UPN

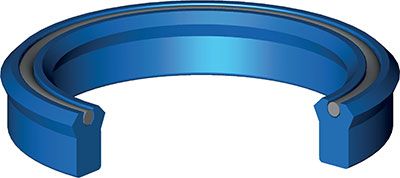

The seal type Aston Seals UPN is the natural further development of the UP seal. It is a high performance all purpose lipseal suitable for both rod and piston which combines the advantage of a highly elastic rubber and the abrasion resistance of polyurethane.
The UPN pro le assures a good reaction against shock pressure peaks and low friction in all conditions.
The energizing O-Ring guarantees a good sealing performance in the low pressure range. The material used to produce this seal is a polyurethane compound that ensures excellent properties on wear-resistance, extended service life and resistance against extrusion.
- Good sealing performance as well as at low pressure
- Suitable for both rod and piston
- Economical solution
- Excellent wear-resistance
- Extended service life
- High resistance against extrusion
- Good temperature resistance
- Easy installation without expensive auxiliaries
UPN Seal Model
UPN 5 17 9 UPN 8 18 9 UPN 10 18 5 UPN 10 20 8 UPN 10 22 8 UPN 12 22 5 UPN 12 22 7 UPN 12 22 8 UPN 12 24 8 UPN 14 24 8 UPN 14 27 7 UPN 15 21.5 4.5 UPN 15 25 8 UPN 15 25 10 UPN 16 24 8 UPN 16 26 5 UPN 16 26 8 UPN 16 28 6 UPN 16 28 9 UPN 16 32 8 UPN 17 25 4 UPN 17 25 6 UPN 17 27 6.5 UPN 18 28 8 UPN 18 30 8 UPN 20 28 5.7 UPN 20 28 7 UPN 20 29 5 UPN 20 30 7 UPN 20 30 8 UPN 20 30 10 UPN 20 32 7.5 UPN 20 35 9 UPN 20 40 10 UPN 22 32 8 UPN 22 32 10 UPN 22 35 10 UPN 22 40 10 UPN 24 32 6 UPN 24 32 7 UPN 25 33 6 UPN 25 35 5 UPN 25 35 8 UPN 25 35 10 UPN 25 38 8 UPN 25 38 10 UPN 25 40 7 UPN 25 40 10 UPN 27 36.5 6.8 UPN 28 38 7 UPN 28 38 8 UPN 28 38 10 UPN 28 40 10 UPN 30 40 5 UPN 30 40 6 UPN 30 40 10 UPN 30 42 9 UPN 30 42 10 UPN 30 45 10 UPN 30 50 10 UPN 30 50 12 UPN 32 40 5.5 UPN 32 40 8 UPN 32 42 10 UPN 32 45 10 UPN 34 45 7 UPN 34 45 9 UPN 35 43 6 UPN 35 45 5 UPN 35 45 6 UPN 35 45 7 UPN 35 45 8 UPN 35 45 10 UPN 35 48 10 UPN 35 50 10 UPN 35 55 10 UPN 35 55 12 UPN 36 46 7 UPN 36 48 8 UPN 38 46 6.5 UPN 38 50 9 UPN 38 55 10 UPN 38 58 10 UPN 40 48 5.8 UPN 40 48 8 UPN 40 50 5 UPN 40 50 6 UPN 40 50 6.5 UPN 40 50 8 UPN 40 50 10 UPN 40 55 10 UPN 40 60 10 UPN 40 60 13 UPN 42 50 6 UPN 42 50 8 UPN 42 52 9 UPN 42 62 12 UPN 45 53 6.5 UPN 45 55 6 UPN 45 55 6.5 UPN 45 55 10 UPN 45 56 7 UPN 45 60 10 UPN 45 63 10 UPN 45 65 10 UPN 45 65 12 UPN 48 58 10 UPN 50 60 5 UPN 50 60 6 UPN 50 60 7 UPN 50 60 10 UPN 50 60 11 UPN 50 62 9 UPN 50 63 6 UPN 50 65 7 UPN 50 65 10 UPN 50 70 10 UPN 50 70 12 UPN 52 62 12 UPN 53 63 6.5 UPN 55 65 6 UPN 55 65 10 UPN 55 65 12 UPN 55 70 12 UPN 55 75 12 UPN 55 80 12 UPN 56 66 5 UPN 56 66 6 UPN 60 70 5 UPN 60 70 6 UPN 60 70 8 UPN 60 70 10 UPN 60 70 12 UPN 60 71 7 UPN 60 75 10 UPN 60 75 12 UPN 60 80 10 UPN 60 80 12 UPN 60 80 18 UPN 63 73 6 UPN 63 75 10 UPN 63 78 10 UPN 65 75 6 UPN 65 75 12 UPN 65 80 10 UPN 65 80 11 UPN 65 80 12 UPN 65 85 12 UPN 67 77 10 UPN 68 92.4 14 UPN 70 75 3.5 UPN 70 80 5 UPN 70 80 6 UPN 70 80 8 UPN 70 80 10 UPN 70 80 12 UPN 70 85 11 UPN 70 85 12 UPN 70 90 12 UPN 75 85 6 UPN 75 85 12 UPN 75 90 7.5 UPN 75 90 10 UPN 75 90 12 UPN 75 95 10 UPN 75 95 12 UPN 75 95 13.5 UPN 75 95 14.5 UPN 77.5 87.5 10 UPN 80 90 5 UPN 80 90 6 UPN 80 90 8 UPN 80 90 10 UPN 80 90 12 UPN 80 95 12 UPN 80 100 9.5 UPN 80 100 12 UPN 85 95 8.5 UPN 85 95 12 UPN 85 100 9 UPN 85 100 10 UPN 85 100 12 UPN 85 105 12 UPN 90 100 8 UPN 90 100 12 UPN 90 105 12 UPN 90 110 12 UPN 90 115 12 UPN 90 115 15 UPN 95 110 9 UPN 95 110 12 UPN 95 115 12 UPN 100 115 9 UPN 100 115 12 UPN 100 120 12 UPN 100 125 12 UPN 100 125 15 UPN 105 120 8 UPN 105 120 11 UPN 105 120 15 UPN 105 125 12 UPN 105 125 15 UPN 110 125 9 UPN 110 125 12 UPN 110 125 15 UPN 110 130 15 UPN 115 135 15 UPN 120 140 15 UPN 125 140 9 UPN 125 140 11 UPN 125 140 15 UPN 125 145 15 UPN 130 145 12 UPN 130 150 15 UPN 140 155 9 UPN 140 160 12 UPN 140 160 15 UPN 145 165 15 UPN 150 170 15 UPN 160 175 12 UPN 160 180 15 UPN 170 190 12 UPN 170 190 15 UPN 175 200 15 UPN 180 200 15 UPN 180 205 18 UPN 190 210 15 UPN 200 220 12 UPN 200 220 15 UPN 200 225 18 UPN 220 250 18 UPN 1500 2000 0250 UPN 2000 2500 0250 UPN 2000 2625 0562 UPN 2125 2625 0406 UPN 2250 2625 0375 UPN 2500 3250 0620 UPN 2625 3000 0187 UPN 3000 3625 0562 UPN 3000 3750 0620 UPN 3500 3875 0375 UPN 3500 4000 0375 UPN 3500 4250 0620 UPN 3875 4250 0187 UPN 5250 6000 0620 UPN 6250 7000 0620 UPN 6500 7500 0765 UPN 7000 8000 0750
