UP

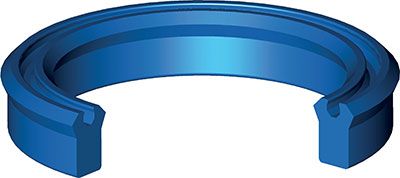

The seal type Aston Seals UP is a high performance all purpose lipseal suitable for both rod and piston.
The UP pro le assures a good reaction against shock pressure peaks and low friction in all conditions.
The material used to produce this seal is a polyurethane compound that ensures excellent properties on wear-resistance, extended service life and resistance against extrusion.
- Suitable for both rod and piston
- Economical solution
- Excellent wear-resistance
- Extended service life
- High resistance against extrusion
- Good temperature resistance
- Easy installation without expensive auxiliaries
UP Seal Model
UP 3 8 4 UP 3 9 4.5 UP 4 10 4 UP 4 10 4.5 UP 4.5 11 5 UP 5 12 4.5 UP 5 12 5 UP 5 12 6 UP 5 17 9 UP 6 12 4 UP 6 12 5.2 UP 6 12 5.5 UP 6 12 6 UP 6 12 8 UP 6 12.7 6 UP 6 15 8 UP 6.35 11.11 UP 7 14 3.5 UP 7 15 7 UP 8 12 2.4 UP 8 14 6 UP 8 15 5.8 UP 8 15 8 UP 8 16 4 UP 8 16 5.8 UP 8 18 9 UP 8.4 16 5.8 UP 10 16 4 UP 10 16 5.6 UP 10 16 6 UP 10 18 5 UP 10 18 6 UP 10 18 8 UP 10 20 8 UP 10 22 8 UP 12 18 4.5 UP 12 18 5 UP 12 18 6 UP 12 20 8 UP 12 22 5 UP 12 22 7 UP 12 22 8 UP 12 24 8 UP 14 20 4.8 UP 14 22 6 UP 14 24 8 UP 14 27 7 UP 15 21.5 4.5 UP 15 25 8 UP 15 25 10 UP 16 22 4 UP 16 22 5 UP 16 22 5.5 UP 16 24 5 UP 16 24 8 UP 16 24 9 UP 16 26 5 UP 16 26 8 UP 16 28 6 UP 16 28 9 UP 16 32 8 UP 17 23 4 UP 17 25 4 UP 17 25 6 UP 17 25 10 UP 17 27 6.5 UP 18 25 5 UP 18 26 6.5 UP 18 26 8 UP 18 26 8.5 UP 18 28 8 UP 18 30 8 UP 19 25 6 UP 20 26 5 UP 20 28 4 UP 20 28 5 UP 20 28 5.7 UP 20 28 7 UP 20 28 8 UP 20 29 5 UP 20 30 7 UP 20 30 8 UP 20 30 10 UP 20 32 7.5 UP 20 35 9 UP 20 40 10 UP 22 27 2.6 UP 22 28 8 UP 22 30 6 UP 22 32 8 UP 22 32 10 UP 22 35 10 UP 22 40 10 UP 24 32 4 UP 24 32 6 UP 24 32 7 UP 24 34 5 UP 25 33 5 UP 25 33 6 UP 25 35 10 UP 25 35 5 UP 25 35 8 UP 25 38 10 UP 25 38 8 UP 25 40 10 UP 25 40 7 UP 26 34 4 UP 27 36.5 6.8 UP 28 35 4.7 UP 28 35.5 5 UP 28 36 6.5 UP 28 38 7 UP 28 38 8 UP 28 38 10 UP 28 40 10 UP 28 50 10 UP 30 36 4 UP 30 37 6 UP 30 38 4 UP 30 38 5.8 UP 30 38 6 UP 30 38 7 UP 30 40 5 UP 30 40 6 UP 30 40 10 UP 30 42 9 UP 30 42 10 UP 30 45 10 UP 30 50 10 UP 30 50 12 UP 32 40 5.5 UP 32 40 8 UP 32 42 10 UP 32 45 10 UP 34 45 7 UP 34 45 9 UP 35 43 6 UP 35 45 5 UP 35 45 6 UP 35 45 7 UP 35 45 8 UP 35 45 10 UP 35 48 10 UP 35 50 10 UP 55 65 12 UP 55 70 12 UP 55 75 12 UP 55 80 12 UP 56 66 5 UP 56 66 6 UP 60 70 5 UP 60 70 6 UP 60 70 8 UP 60 70 10 UP 60 70 12 UP 60 71 7 UP 60 75 10 UP 60 75 12 UP 60 80 10 UP 60 80 12 UP 60 80 18 UP 63 73 6 UP 63 75 10 UP 63 78 10 UP 65 75 6 UP 65 75 12 UP 65 80 10 UP 65 80 11 UP 35 55 10 UP 35 55 12 UP 36 46 7 UP 36 48 8 UP 38 45 5 UP 38 46 6.5 UP 38 50 9 UP 38 55 10 UP 38 58 10 UP 40 48 5.8 UP 40 48 8 UP 40 50 5 UP 40 50 6 UP 40 50 6.5 UP 40 50 8 UP 40 50 10 UP 40 55 10 UP 40 60 10 UP 40 60 13 UP 42 50 6 UP 42 50 8 UP 42 52 9 UP 42 62 12 UP 45 53 6.5 UP 45 55 6 UP 45 55 6.5 UP 45 55 10 UP 45 56 7 UP 45 60 10 UP 45 63 10 UP 45 65 10 UP 45 65 12 UP 48 58 10 UP 50 60 5 UP 50 60 6 UP 50 60 7 UP 50 60 10 UP 50 60 11 UP 50 62 9 UP 50 63 6 UP 50 65 7 UP 50 65 10 UP 50 70 10 UP 50 70 12 UP 52 62 12 UP 53 63 6.5 UP 55 65 6 UP 55 65 10 UP 100 115 9 UP 100 115 12 UP 100 120 12 UP 100 125 12 UP 100 125 15 UP 105 120 8 UP 105 120 11 UP 105 120 15 UP 105 125 12 UP 105 125 15 UP 110 125 9 UP 110 125 12 UP 110 125 15 UP 110 130 15 UP 115 135 15 UP 120 140 15 UP 125 140 9 UP 125 140 11 UP 125 140 15 UP 125 145 15 UP 130 145 12 UP 130 150 15 UP 140 155 9 UP 140 160 12 UP 65 80 12 UP 65 85 12 UP 67 77 10 UP 67.3 80 6.5 UP 68 92.4 14 UP 70 75 3.5 UP 70 80 5 UP 70 80 6 UP 70 80 8 UP 70 80 10 UP 70 80 12 UP 70 85 11 UP 70 85 12 UP 70 90 12 UP 70 90 18 UP 75 85 6 UP 75 85 12 UP 75 90 7.5 UP 75 90 10 UP 75 90 12 UP 75 95 10 UP 75 95 12 UP 75 95 13.5 UP 75 95 14.5 UP 77.5 87.5 10 UP 80 90 5 UP 80 90 6 UP 80 90 8 UP 80 90 10 UP 80 90 12 UP 80 95 12 UP 80 100 9.5 UP 80 100 12 UP 85 95 8.5 UP 85 95 12 UP 85 100 9 UP 85 100 10 UP 85 100 12 UP 85 105 12 UP 90 100 8 UP 90 100 12 UP 90 105 12 UP 90 110 12 UP 90 115 12 UP 90 115 15 UP 95 110 9 UP 95 110 12 UP 95 115 12 UP 140 160 15 UP 145 165 15 UP 150 170 15 UP 160 175 12 UP 160 180 15 UP 170 190 12 UP 170 190 15 UP 175 200 15 UP 180 200 15 UP 180 205 18 UP 190 210 15 UP 200 220 12 UP 200 220 15 UP 200 225 18 UP 220 250 18 UP 1500 2000 0250 UP 2000 2500 0250 UP 2000 2625 0562 UP 2125 2625 0406 UP 2250 2625 0375 UP 2500 3250 0620 UP 2625 3000 0187 UP 3000 3625 0562 UP 3000 3750 0620 UP 3500 3875 0375 UP 3500 4000 0375 UP 3500 4250 0620 UP 3875 4250 0187 UP 5250 6000 0620 UP 6250 7000 0620 UP 6500 7500 0765 UP 7000 8000 0750
