A

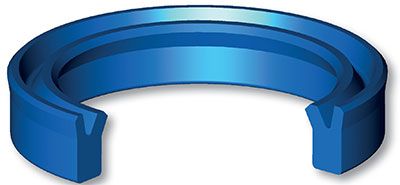

The rod seal type Aston Seals A assures a good reaction against shock pressure peaks and low friction in the low pressure range.
The asymmetric lips are designed to differentiate the behaviour of the lips on the static and dynamic surfaces: the static lip is flexible and more sensitive to pressure fluctuations; the dynamic lip is shorter and stronger to concentrate load against the dynamic surface.
Wear and dry run are largely prevented by additional lubricant retained within the gap created by the secondary lip.
The material used to produce this seal is a polyurethane compound that ensures excellent properties on wear-resistance, extended service life and resistance against extrusion.
- Extended service life
- High resistance against extrusion
- Excellent wear-resistance
- Good temperature resistance
- Insensitive to structural deflections
- Easy installation without expensive auxiliaries
A Seal Model
A 40 50 10 A 40 52 8 A 40 60 10 A 42 47 2.6 A 42 50 5.8 A 42 50 6 A 45 53 5.8 A 45 55 7 A 45 55 10 A 45 58 9 A 45 60 11.5 A 46 56 7 A 50 60 7 A 50 60 10 A 50 63 10 A 50 65 10 A 50 65 11.5 A 50 68 9 A 55 65 7 A 55 65 10 A 55 65 12 A 55 70 9.5 A 56 66 7 A 56 66 10 A 56 68 7 A 56 71 10 A 60 65.6 5.6 A 60 70 7 A 60 70 10 A 60 70 12 A 60 72 8 A 60 72 9 A 60 73 10 A 60 75 10 A 60 75 12 A 63 73 10 A 65 78 10 A 65 80 10 A 65 80 12 A 70 80 7 A 70 80 10 A 70 83 10 A 70 85 10 A 70 85 11 A 73 82.5 7 A 75 88 10 A 75 90 10 A 80 90 7 A 80 90 12 A 80 93 10 A 80 95 10 A 85 95 7.2 A 85 100 12 A 90 100 12 A 90 105 10 A 90 105 12 A 90 110 12 A 95 105 5 A 100 108 5 A 100 109.3 5.7 A 100 115 9 A 100 115 10.5 A 100 115 12 A 100 120 12.5 A 100 120 15 A 105 113 5 A 105 115 5.7 A 110 120 5.5 A 110 120 12 A 110 125 9.6 A 110 130 12 A 115 130 11 A 120 128 5 A 120 140 15 A 125 145 12 A 130 138 5 A 130 145 14 A 140 150 6 A 140 150 11.5 A 155 165 6 A 160 185 19 A 165 175 6 A 180 200 14.5 A 200 210 6 A 200 220 14.5 A 216 226 6 A 238 258 15 A 239.5 260.5 16.5 A 240 260 15 A 265 295 19 A 2000 2375 0315 A 7000 8000 0765
