YB

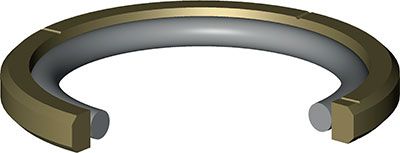

The piston seal type Aston Seals YB is composed of:
- A dynamic seal element which assures exceptional low friction and high speed performance, high compatibility with nearly all media due to the chemical resistance which exceeds that of all other thermoplastics and elastomers. Side grooves ensure that pressure loads the energizing O-Ring in all work conditions
- A standard size O-Ring with low permanent deformation as energizing component on the static side
- Low static and dynamic friction
- Highspeedallowed
- No tendency of stick-slip
- Space-savingconstructionandsimplegroove design
- High compatibility with nearly all fluids (with the right choice of O-Ring material)
- High resistance against extrusion
- High temperature resistance
YB Seal Model
YB 8 3.1 2.2 YB 10 5.1 2.2 YB 12 7.1 2.2 YB 15 7.5 3.2 YB 16 8.5 3.2 YB 18 10.5 3.2 YB 20 12.5 3.2 YB 22 14.5 3.2 YB 24 16.5 3.2 YB 25 17.5 3.2 YB 28 20.5 3.2 YB 30 22.5 3.2 YB 32 24.5 3.2 YB 35 27.5 3.2 YB 36 28.5 3.2 YB 38 30.5 3.2 YB 39 31.5 3.2 YB 40 29 4.2 YB 42 31 4.2 YB 45 34 4.2 YB 48 37 4.2 YB 50 39 4.2 YB 52 41 4.2 YB 55 44 4.2 YB 57 46 4.2 YB 60 49 4.2 YB 62 51 4.2 YB 63 52 4.2 YB 64 53 4.2 YB 65 54 4.2 YB 70 59 4.2 YB 75 64 4.2 YB 80 64.5 6.3 YB 85 69.5 6.3 YB 89 73.5 6.3 YB 90 74.5 6.3 YB 95 79.5 6.3 YB 100 84.5 6.3 YB 105 89.5 6.3 YB 110 94.5 6.3 YB 115 99.5 6.3 YB 120 104.5 6.3 YB 125 109.5 6.3 YB 130 114.5 6.3 YB 132 116.5 6.3 YB 133 112 8.1 YB 135 114 8.1 YB 140 119 8.1 YB 145 124 8.1 YB 150 129 8.1 YB 154 133 8.1 YB 155 134 8.1 YB 160 139 8.1 YB 165 144 8.1 YB 170 149 8.1 YB 175 154 8.1 YB 180 159 8.1 YB 185 164 8.1 YB 190 169 8.1 YB 200 179 8.1 YB 210 189 8.1 YB 220 199 8.1 YB 230 209 8.1 YB 240 219 8.1 YB 250 229 8.1 YB 260 239 8.1 YB 270 249 8.1 YB 280 259 8.1 YB 290 269 8.1 YB 300 279 8.1 YB 310 289 8.1 YB 320 299 8.1 YB 330 305.5 8.1 YB 340 315.5 8.1 YB 350 325.5 8.1 YB 360 335.5 8.1 YB 370 345.5 8.1 YB 380 355.5 8.1 YB 390 365.5 8.1 YB 400 375.5 8.1 YB 410 385.5 8.1 YB 420 395.5 8.1 YB 430 405.5 8.1 YB 440 415.5 8.1 YB 450 425.5 8.1 YB 460 435.5 8.1 YB 470 445.5 8.1 YB 480 455.5 8.1 YB 490 465.5 8.1 YB 500 475.5 8.1
