TPM - TPM/P
A double-acting seal for one piece piston, the TPM represents an inexpensive sealing solution that guarantees excellent resistance where medium pressure is

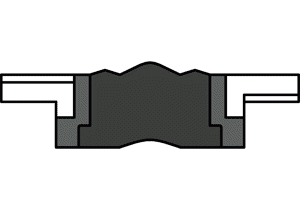

present. Composed of five elements (central part in NBR, two support rings in thermoplastic material and two acetalic guide rings), it’s available in two versions (TPM and TPM/E) different only in the profile of the main sealing element in NBR. The unique combination of material in which this seal is produced guarantee low friction were high pressure is present. In the presence of harsh working conditions this sealing element is also available in special material able to
withstand high temperatures.
Technical info:
- Max. Pressure 300 bar
- Speed: 0,5 m/s
- Temperature °C: -30 +110
- Material: NBR + POM + PET
