TGU

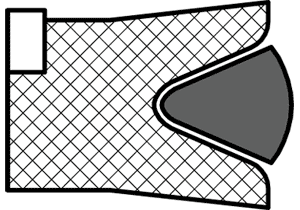

The TGU series give general characteristics that are suitable for piston application in double-acting cylinders. Composed of three elements: main sealing element in reinforced rubber fabric (our type FUCA 77), a NBR energizer that ensures that the sealing lips of the main element are working even in cases of low pressure, and to prevent extrusion, an acetal resin anti-extrusion ring in POM has been incorporated into the main element.

Technical info:

  • Max. Pressure 700 bar
  • Speed: 0,5 m/s
  • Temperature °C: -30 +120
  • Material: NBR + CNT4 + POM
