KD

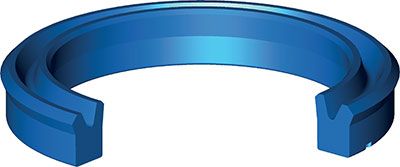

The piston seal type Aston Seals KD assures a good reaction against shock pressure peaks and low friction in the low pressure range.
The asymmetric lips are designed to differentiate the behaviour of the lips on the static and dynamic surfaces: the static lip is flexible, more sensitive to pressure fluctuations and it guaranties a wide contact area; the dynamic lip is shorter and stronger to concentrate load against the dynamic surface.
They can also be used in back-to-back arrangement for double acting piston.
- High resistance against extrusion
- Insensitive to structural deflections
- Extended service life
- Simple groove design
- Excellent wear-resistance
- Good temperature resistance
- Easy installation without expensive auxiliaries
KD Seal Model
KD 11 4 8 KD 16 8 5.8 KD 16 10 5.7 KD 18 12.1 3.93 KD 20 10 7.5 KD 20 12 5.3 KD 22 12 8 KD 25 13 7 KD 25 15 8 KD 25 17 10 KD 30 15 10 KD 30 20 8 KD 30 22 6 KD 31.75 19 7 KD 32 17 10 KD 32 22 10 KD 32 26 5 KD 32 26 6 KD 35 20 10 KD 35 22.5 6 KD 35 25 8 KD 38 31 4.7 KD 40 25 10 KD 40 30 6.5 KD 40 33 8 KD 42 32 10 KD 45 30 10 KD 46 39.4 4 KD 50 35 10 KD 50 40 5 KD 50 40 7.3 KD 50 40 10 KD 50 42 5.5 KD 50 42 8 KD 55 40 10 KD 55 45 6.5 KD 56 46 7 KD 60 40 12 KD 60 40 13.5 KD 60 45 10 KD 60 50 7 KD 63 45 10 KD 63 48 10 KD 63 48 12 KD 63 53 7 KD 65 45 12 KD 65 50 10 KD 65 55 10 KD 70 50 12 KD 70 50 15 KD 70 60 7 KD 70 60 8 KD 70 60 12 KD 75 65 5 KD 75 65 7 KD 75 65 10 KD 75 65 12 KD 80 60 12 KD 80 60 13.5 KD 80 65 12 KD 80 70 7 KD 80 70 12 KD 85 65 13.5 KD 90 70 12 KD 90 70 13.5 KD 90 75 10 KD 90 75 12 KD 90 80 5 KD 90 80 10 KD 90 80 12 KD 95 85 7 KD 95 85 8.5 KD 95 87 4 KD 100 80 12 KD 100 85 12 KD 100 90 8 KD 105 85 12 KD 110 100 7 KD 120 100 12 KD 125 105 12 KD 160 140 8.25 KD 170 152 7 KD 180 160 13.5 KD 180 160 15 KD 190 172 7 KD 220 200 15 KD 250 220 18 KD 3000 2385 0535 KD 4250 3640 0535 KD 8000 7000 0750
