FSP

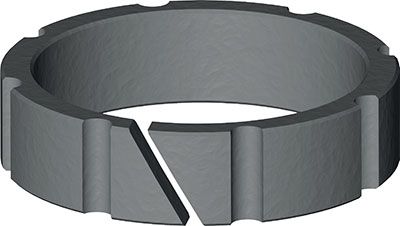

The guide rings type Aston Seals FSP have been realized to substitute traditional bronze guide in hydraulic cylinders.
They guide the rod of a plunger cylinder where, thanks to the big longitudinal grooves on the outside surface, an over ow of the fluid is continuously assured.
The compound used for these guides is a medium viscosity acetal resin glass fibre reinforced characterized by high strength, rigidity, hardness, impact resistance, resilience and excellent stability to high and low temperature.

  • Extended service life
  • Excellent wear-resistance
  • Simple design of groove and assembly
  • Low friction
  • Good resistance to loads
  • Good mechanical stability at high temperature
  • Easy installation without expensive auxiliaries

FSP Seal Model

FSP 25 16 12 FSP 30 20 12 FSP 33.5 24.5 12 FSP 35 25 12 FSP 40 30 12 FSP 42 32 12 FSP 45 35 12 FSP 49 41 8 FSP 49.9 40.92 11.7 FSP 50 40 15 FSP 54.5 45 19 FSP 55 45 5 FSP 55 45 15 FSP 60 45 15 FSP 60 50 15 FSP 65 55 15 FSP 65 57 8 FSP 70 60 15 FSP 70 60 19 FSP 75 65 3 FSP 75 65 12 FSP 75 65 15 FSP 80 71 10 FSP 85 75 15 FSP 92 83 10 FSP 95 86 10 FSP 100 90 15 FSP 112 102 12 FSP 120 110 15 FSP 131 121 14 FSP 152 140 16
