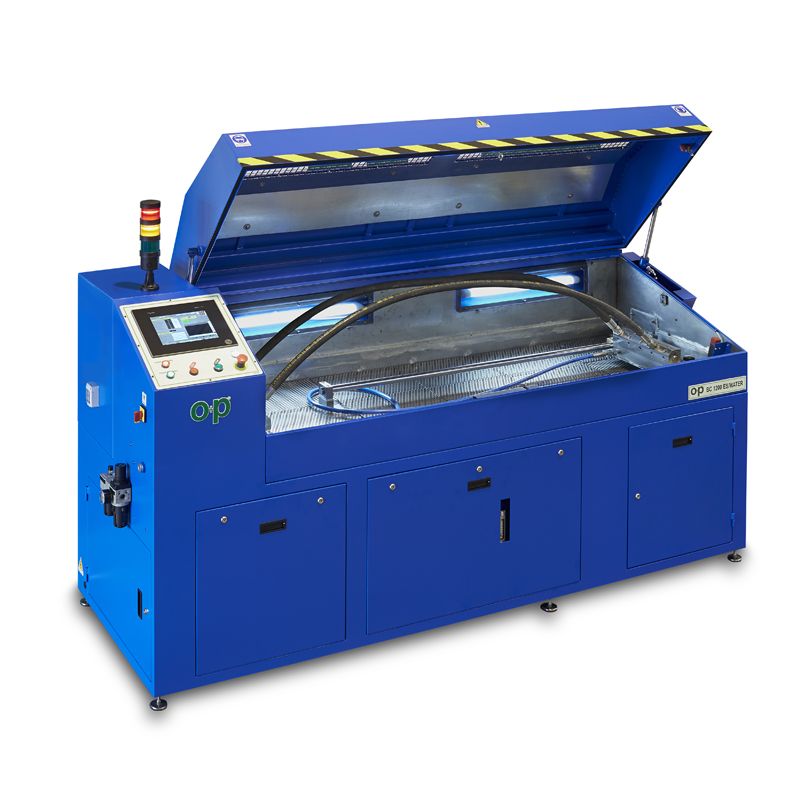

1200 and 2000 bar water test bench provided with pneumo-hydraulic pump.
Automatic door opening and luminous signal.
Lighted internal chamber protected by a shock-proof testing window; oil-protecting mesh and shelve for tools.
Static and impulse pressure by air-oil pressure multiplier.
PLC control.
Chamber and components are made in stainless steel.
Product specifications could be modified without prior notice.
STATIC PRESSURE | 1200-2000 bar (11600 -17400 - 29000 psi |
IMPULSE PRESSURE | 1200 - 2000 bar (11600 - 17400 - 29000 psi) |
MIN. STARTING PRESSURE | 1200 bar: 30 bar (435 psi) 2000 bar: 50 bar (725 psi) |
PRESSURE CONTROL | automatic |
TEST | automatic |
TYPE OF DRIVE | pneumatic intensifier |
TEST LIQUID | water |
N. MANIFOLDS | 2 |
N. MANIFOLD CONNECTIONS | 15x1/4'' BSP |
LIQUID FILLING | automatic |
FILLING FLOW | 17 Lt/min |
HOSE EMPTYING SYSTEM | automatic |
PRESSURE DISCHARGE | automatic |
PRESSURE DISPLAY | digital |
DOOR MECHANIC SAFETY DEVICE | automatic |
DOOR ELECTRIC SAFETY DEVICE | automatic |
STANDARD CHAMBER DIMENSIONS | 2200x900 mm (86.614''x 35.433'') |
BENCH DIMENSIONS | 2700x980x1700 mm (106.299''x38.583''x6.930'') |
AIR CONSUMPTION | 1500 Lt/min |
TANK | 100 Lt |
STANDARD VOLTAGE | 400V 50HZ 3PH |
WEIGHT WITHOUT WATER | 976 KG (2150 Lbs) |
AUTOMATIC CONTROL WITH PLC | Incl. |
AUTOMATIC DOOR OPENING | Incl. |
INTERNAL LIGHTNING | Incl. |
SHOCK-PROOF CHECKING WINDOWS | Incl. |
SUCTION FILTER | Incl. |
DELIVERY FILTER | Incl. |
SHELVES FOR TOOLS | Incl. |
SLIDING MANIFOLDS | Incl. |
PEAK PRESSURE MEMORY | Incl. |
LEVEL ALARM | Incl. |
USB CONNECTION CONFIGURATION | Incl. |
PDF FILE PRINTING | Incl. |
SAE MANIFOLDS | OPTIONAL |
ADAPTORS | OPTIONAL |
BURST-PROOF PROTECTION | OPTIONAL |
TESTING CHAMBER 3000 mm | OPTIONAL |
WASHING | OPTIONAL |
PC CONNECTION | OPTIONAL |
SPECIAL VOLTAGE | OPTIONAL |
CONNECTION FROM PLC TO PC | OPTIONAL |
