Xr331 ø101.6 ‘sae B’ Flange - Реверсивные насосы

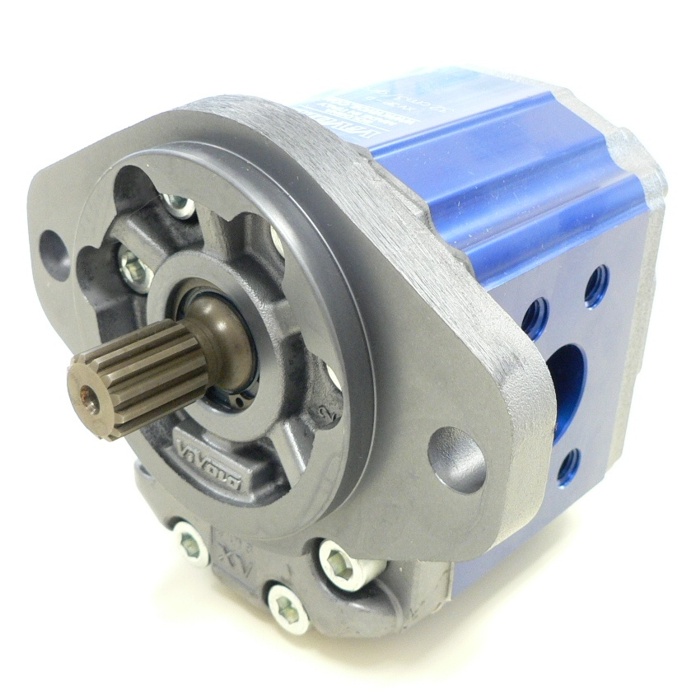

XR331 – ‘SAE B’ TYPE PUMP – ø101.6 FLANGE – SPLINED SHAFT – BSPP PORTS

Specification

Displacements from 14.89 cm3/revolution to 86.87 cm3/revolution.
Maximum pressures up to 320 bar.
Rotation speeds up to 3000 rpm.
Configurations with inlet and outlet in the body, flange and cover.

Available shafts:

Tapered 1:8 Woodruff key;
Parallel with key;
Splined.

The version with internal drainage is also available.

XR331

XR333 – ‘SAE B’ TYPE PUMP – ø101.6 FLANGE – SPLINED SHAFT

XR331
