Xr301 ø50.8 Flange - Реверсивные насосы

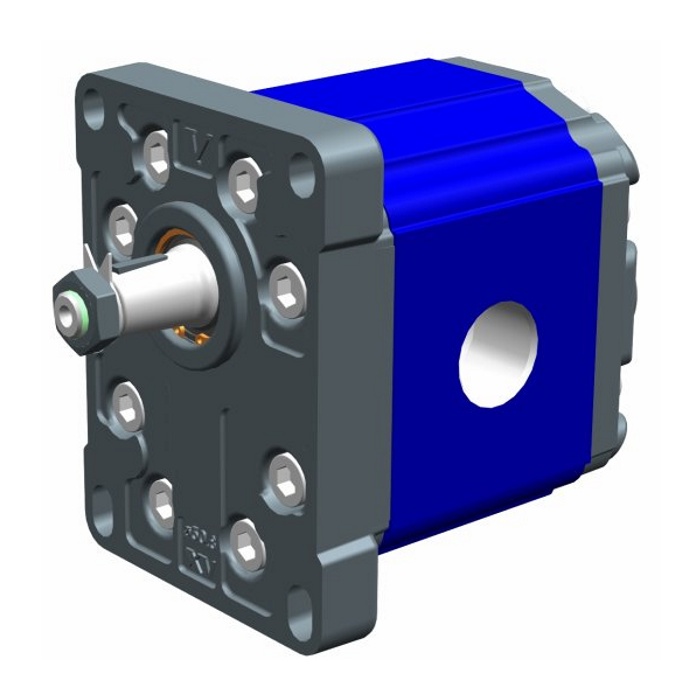

XR301 – STANDARD EUROPEAN PUMP – ø50.8 FLANGE – TAPER SHAFT

Specification

Displacements from 14.89 cm3/revolution to 86.87 cm3/revolution.
Maximum pressures up to 320 bar.
Rotation speeds up to 3000 rpm.
Configurations with inlet and outlet in the body, flange and cover.

Available shafts:

Tapered 1:8 Woodruff key;
Parallel with key;
Splined.

The version with internal drainage is also available.

XR301

XR302 – STANDARD EUROPEAN PUMP – ø50.8 FLANGE – TAPER SHAFT – BSPP PORTS

XR301
