XA Series


XA Series

Applications

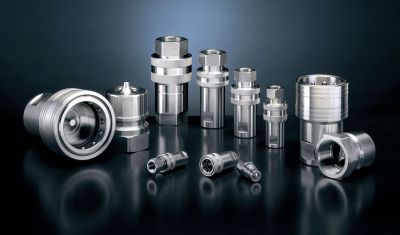

Thanks to excellent resistance to the corrosion, the XA series is used in several applications where there is an aggressive environment and/or an aggressive fluid inside . The accordance with the ISO 7241-1A standard assures the interchangeability of this series all over the world. The stainless steel quick-release couplings are mainly used in industrial, chemical, oil and naval plants.


Features
  • Interchangeability: ISO 7241-1A
  • Shut-off system: poppet valve
  • Latching system: balls - bearing
  • Connection: pulling back the sleeve
  • Disconnection: pulling back the sleeve
  • Connectability: without pressure
  • Disconnection under pressure: not allowed
  • Threads: BSP – NPT
  • Sizes: 1/4" , 3/8”, 1/2”, 3/4”, 1”, 1 ¼”, 1 ½”, 2"
  • Materials: Female in stainless steel AISI 316, male in stainless steel AISI 316, valves in stainless steel AISI 316
  • Surface treatment: electrolytic polishing springs in stainless steel AISI 316, balls in stainless steel AISI 316
  • Seals: standard VITON, on request NBR
  • Antiextrusion rings: PTFE
  • Working Temperatures: NBR -20°C +100°C VITON -15°C +140°C
