VUC
Applications

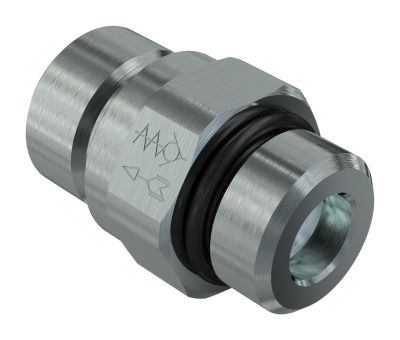

Compact check valves
VUC series check-valves are very compact being them assembled with only one piece body. Standard cracking pressure 35 kPa.
Items
.
| Size (mm) | PartNumber | Thread | HEX1 | D1 | L1 |
|---|---|---|---|---|---|
| 6,3 | VUC2/DM-41/BM | M18x1,5 MALE 12L | 19 | 21 | 32 |
| 6,3 | VUC41/AM-2/CM | M12X1,5 MALE | 19 | 21 | 55.5 |
| 10 | VUC1/BM-11/ESA2 | M14x1,5 MALE | 19 | 21 | 35.9 |
| 10 | VUC1/DM-11/ES | M18x1,5 MALE | 24 | 26 | 41 |
| 10 | VUC11/ES-1/ES | 11/16"-16 UN MALE ORFS | 19 | 21 | 32.6 |
| 10 | VUC11/ES-11/ES | 11/16"-16 UN MALE ORFS | 19 | 21 | 33.6 |
| 10 | VUC11/ES-11/FS | 11/16"-16 UN MALE ORFS | 22 | 24 | 33.6 |
| 10 | VUC11/ES-41/BM | 11/16"-16 UN MALE ORFS | 19 | 21 | 35.9 |
| 10 | VUC11/FS-11/ES | 13/16"-16 UN MALE ORFS | 22 | 24 | 33.6 |
| 10 | VUC13/ES28/ESA2 | 9/16"-18 UNF MALE JIC | 19 | 21 | 40.5 |
| 10 | VUC13/ES28/ESZZ | 9/16"-18 UNF MALE JIC | 19 | 21 | 40.5 |
| 10 | VUC11/CS-1/ES E | 9/16"-18 UNF MALE | 19 | 21 | 31.6 |
| 12,5 | VUC1/DM-11/FS | M18x1,5 MALE | 24 | 26 | 43 |
| 12,5 | VUC1/DM-11/FSB1 | M18x1,5 MALE | 24 | 26 | 43 |
| 12,5 | VUC1/FS-11/FSC | 3/4"-16 UNF MALE | 24 | 26 | 38.1 |
| 12,5 | VUC1/FS-11/FSX | 3/4"-16 UNF MALE | 24 | 26 | 38.1 |
| 20 | VUC1/HS-11/HSE | 1-1/16"-12 UN MALE | 32 | 35 | 46.1 |
| 20 | VUC1/HS-11/HSM | 1-1/16"-12 UN MALE | 32 | 35 | 46.1 |
| 20 | VUC13/HS13/HSA2 | 1-1/16"-12 UN MALE JIC | 32 | 25 | 50 |
| 25 | VUC1/MM-11/MS | M33x2 MALE | 48 | 54 | 72.6 |
| 25 | VUC1/MM-11/MSA1 | M33x2 MALE | 48 | 54 | 72.6 |
| 25 | VUC11/LS-11/LS | 1-7/16"-12 UN MALE ORFS | 38 | 42 | 50.5 |
| 25 | VUC11/LS11/LSZC | 1-7/16"-12 UN MALE ORFS | 38 | 42 | 50.5 |
