VU


VU

Applications

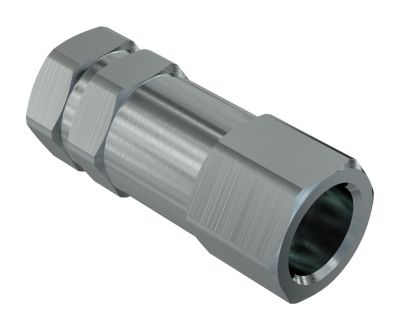

Standard check valves

Check valves acting as a safety device into hydraulic systems. Standard versions contain a spring set to open the valve at 35KPa; the range of settings is wide (up to 950 kPa). Normally available with inlet and outlet female threads.


Items

.

Size (mm)  PartNumber Thread HEX1 D1 L1
 6,3 VU14F 14F BSPP 1/4" FEMALE 19 21 50
 6,3 VU14F 14F A2 BSPP 1/4" FEMALE 19 21 50
 6,3 VU14F 14F B BSPP 1/4" FEMALE 19 21 50
 6,3 VU14F 14F C BSPP 1/4" FEMALE 19 21 50
 6,3 VU14FN 14FN NPTF 1/4" FEMALE 19 21 50
 6,3 VU14M 14M 60° 1/4 BSPP MALE 22 24.5 50
 6,3 VUJ27/CS11/CSBS 9/16"-18 UNF FEMALE 17 19 54
 6,3 VUS27/CS11/CSBS 9/16"-18 UNF FEMALE 17 19 54
 10 VU38F 38F BSPP 3/8" FEMALE 24 27 60
 10 VU38F 38F B BSPP 3/8" FEMALE 24 27 60
 10 VU38FN 38FN NPTF 3/8" FEMALE 24 27 60
 10 VU38FN 38MN NPTF 3/8" FEMALE 22 24.5 58.1
 10 VU38M 38M 60° 3/8 BSPP MALE 22 24.5 50
 10 VU38M 38M V   22 24.5 50
 12,5 VU12F 12F BSPP 1/2" FEMALE 27 30 70
 12,5 VU12M 12M 60° 1/2 BSPP MALE 27 30 56
 12,5 VU1/CG-11/HS C 3/8" BSPP MALE 27 30 62.6
 12,5 VU1/CG-11/HS E 3/8" BSPP MALE 27 30 62.6
 12,5 VU1/CG-11/HS G 3/8" BSPP MALE 27 30 62.6
 12,5 VU1/CG-11/HS I 3/8" BSPP MALE 27 30 62.6
 12,5 VU12F 12F B BSPP 1/2" FEMALE 27 30 70
 12,5 VU12F 12F C BSPP 1/2" FEMALE 27 30 70
 12,5 VU12F 12F M BSPP 1/2" FEMALE 27 30 70
 12,5 VU12FN 12FN NPTF 1/2" FEMALE 27 30 70
 12,5 VU12FN 12FN M NPTF 1/2" FEMALE 27 30 70
 12,5 VU12M 12M M NPTF 1/2" FEMALE 27 30 56
 12,5 VU13/FS-28/FS B 3/4"-16 UNF MALE JIC 27 30 64
 12,5 VU13/GS-1/GS H 7/8"-14 UNF MALE JIC 27 30 66.7
 12,5 VU2/DM-2/DM H M18x1,5 MALE 12L 27 30 52.4
 12,5 VU2/FM-3/GM M22x1,5 MALE 15L 27 30 120
 12,5 VU21/DG-11/HS I 1/2" BSPP MALE 27 30 64.6
 12,5 VU27/FS-11/FS B 13/16"-16 UN FEMALE ORFS 27 30 59.5
 12,5 VU41/FS-11/HS C 3/4"-16 UNF MALE 27 30 63.5
 12,5 VU41/FS-11/HS E 3/4"-16 UNF MALE 27 30 63.5
 12,5 VU41/FS-11/HS I 3/4"-16 UNF MALE 27 30 63.5
 20 VU34F 34F BSPP 3/4" FEMALE 34 38 86
 20 VU1/HS-11/LS G 1-1/16"-12 UN MALE 38 42 70
 20 VU1/HS-11/LS P 1-1/16"-12 UN MALE 38 42 70
 20 VU2/HM-2/HM H M26x1,5 MALE 18L 38 42 58.4
 20 VU34F 34F B BSPP 3/4" FEMALE 34 38 86
 20 VU34F 34F V BSPP 3/4" FEMALE 34 38 86
 20 VU34FN 34FN NPTF 3/4" FEMALE 34 38 86
 20 VU34FN 34FN M NPTF 3/4" FEMALE 34 38 86
 20 VU34FS 34FS 1-1/16"-12 UN FEMALE ORB 36 40 88
 20 VU41/GS-11/GS I 7/8"-14 UNF MALE 38 42 70.3
 25 VU 1F 1F BSPP 1" FEMALE 41 44 100
 25 VU 1F 1F B BSPP 1" FEMALE 41 44 100
 25 VU 1F 1F E BSPP 1" FEMALE 41 44 100
 25 VU 1F 1F G BSPP 1" FEMALE 41 44 100
 25 VU 1F 1F L BSPP 1" FEMALE 41 44 100
 25 VU 1F 1F M BSPP 1" FEMALE 41 44 100
 25 VU 1F 1F U BSPP 1" FEMALE 41 44 100
 25 VU 1FN 1FN NPTF 1" FEMALE 41 44 100
 25 VUS1/GG-1/GG G G 1" 41 45 60
 31,5 VU114F 114F B BSPP 1-1/4" FEMALE 50 55 130
 31,5 VU114F 114F BSPP 1-1/4" FEMALE 50 55 130
 31,5 VU114F 114F C BSPP 1-1/4" FEMALE 50 55 130
 31,5 VU114F 114F E BSPP 1-1/4" FEMALE 50 55 130
 31,5 VU114F 114F M BSPP 1-1/4" FEMALE 50 55 130
 31,5 VU114FN 114FN NPTF 1-1/4" FEMALE 50 55 130
 31,5 VU114FN 114FN L NPTF 1-1/4" FEMALE 50 55 130
 37,5 VU112F 112F M BSPP 1-1/2" FEMALE 60 66 145
 37,5 VU112F 112F BSPP 1-1/2" FEMALE 60 66 145
 37,5 VU112F 112F I BSPP 1-1/2" FEMALE 60 66 145
 37,5 VU112F 112F U BSPP 1-1/2" FEMALE 60 66 145
 50 VU 2F 2F BSPP 2" FEMALE 75 90 160
 50 VU 2F 2F C BSPP 2" FEMALE 75 90 160
 50 VU 2F 2F I BSPP 2" FEMALE 75 90 160

Download Vu Catalogue
