V Series


V Series

Applications

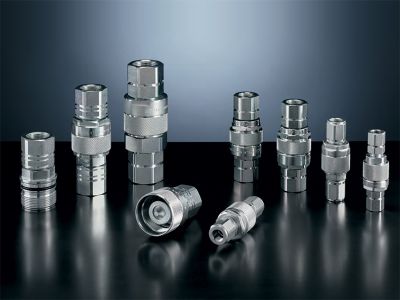

The V series quick-release couplings are particularly prevalent in the East Europe and German markets and they are interchangeable with the main local manufacturers.
Their particular structure allows a wide range of available threads: this eliminates the need for adaptors and therefore also a reduction in costs.
Mechanical strength and the impossibility of an accidental release of the male from the female makes very safe the use of these screw-on couplings: they are very suitable in heavy hydraulic applications either for adverse environment conditions or for high work pressures.
Fields of application: industry, iron industry, oil plant, earth moving machinery and similar service vehicles.


Features
  • Interchangeability: with similar couplings of the major German manufacturers, with FASTER CVV series, STUCCHI VD series, DNP PVV3 series
  • Shut-off system: poppet valve
  • Latching system: screw-on
  • Connection: screwing-on the male’s sleeve
  • Disconnection: screwing-off the male’s sleeve
  • Connectability: allowed under residual pressure
  • Disconnection under pressure: allowed under residual pressure
  • Threads: BSP – NPTF –DIN 2353 L/S
  • Sizes: 1/4", 3/8”, 1/2”, 3/4”, 1”
  • Materials: Female in high grade carbon steel sleeve and male in high grade carbon steel, steel hardened valve
  • Surface treatment: zinc plating and Cr III passivation, springs in C72 steel
  • Seals: standard NBR, on request VITON
  • Antiextrusion rings: PTFE
  • Working Temperatures: NBR -20°C +100°C VITON -15°C +140°C
