RFLS - RFS
Applications

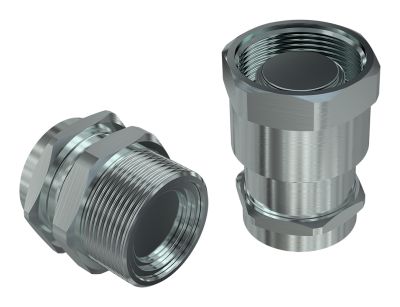

Couplings for air conditioning & refrigeration applications, integrated safety sleeve
RFLS screw-to-connect female couplings are equipped with a low friction sleeve to reduce connection effort together with an integrated safety sleeve to prevent accidental disconnections. Corresponding male couplings RFS series are characterized by Faster profile interchangeability.
Items
| Size (mm) | PartNumber | Thread | HEX1 | D1 | L1 |
|---|---|---|---|---|---|
| 6,3 | RFLS 04 F N | 1/2" -20 UNF FEMALE ORB | 19 | 25 | 38 |
| 10 | RFLS 06 F 5 N | 22 | 30 | 43.9 | |
| 10 | RFLS 06 F N | M18x1,5 FEMALE ORB | 22 | 30 | 43.9 |
| 10 | RFLS 06 F5N AL | 22 | 30 | 43.9 | |
| 12,5 | RFLS 08 F N | 7/8" -20 UNEF ORB FEMALE | 27 | 37 | 55.5 |
| 20 | RFLS 12 F N | 1-1/4" -18 UNEF ORB FEMALE | 36 | 48 | 63.6 |
| Size (mm) | PartNumber | Thread | HEX1 | HEX2 | D1 | D3 | L1 |
|---|---|---|---|---|---|---|---|
| 6,3 | RFS 04 M DE N | 19 | 21 | 16 | 29 | ||
| 6,3 | RFS 04 M N | 1/2" -20 UNF FEMALE ORB | 19 | 21 | 16 | 29 | |
| 10 | RFS 06 M H | 22 | 25 | 20 | 31.6 | ||
| 10 | RFS 06 M N | M18x1,5 FEMALE ORB | 22 | 25 | 20 | 31.6 | |
| 12,5 | RFS 08 M N | 7/8" -20 UNEF ORB FEMALE | 32 | 34 | 38 | 26 | 41.5 |
| 20 | RFS 12 M N | 1-1/4" -18 UNEF ORB FEMALE | 41 | 46 | 50 | 36 | 46.6 |
