RFL
Applications

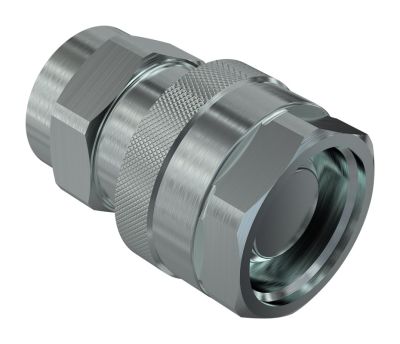

Screw to connect female couplings for air conditioning & refrigeration application, low friction sleeve
RFL screw-to-connect female couplings are equipped with a low friction sleeve in order to reduce connection effort and friction. Fully interchangeable with RF series same size.
Items
| Size (mm) | PartNumber | Thread | HEX1 | HEX3 | D1 | L1 |
|---|---|---|---|---|---|---|
| 6,3 | RFL04 F N | 1/2" -20 UNF FEMALE ORB | 16 | 19 | 25 | 29.4 |
| 10 | RFL06 F N | M18x1,5 FEMALE ORB | 22 | 24 | 28 | 34.5 |
| 12,5 | RFL08 F N | 7/8" -20 UNEF ORB FEMALE | 27 | 30 | 34 | 49.3 |
| 12,5 | RFLR08TS125LF5N | 27 | 30 | 34 | 170 | |
| 20 | RFL12 F N | 1-1/4" -18 UNEF ORB FEMALE | 36 | 41 | 45 | 56.8 |
| 25 | RFL16 F N | 1-19/32" -20 UN ORB FEMALE | 46 | 50 | 55 | 64 |
| 25 | RFLR16TS290LF5N | 46 | 50 | 55 | 211.8 |
