NS
Applications

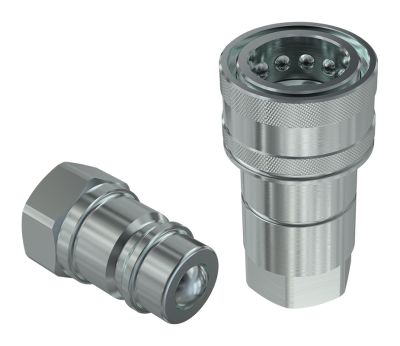

Standard couplings with ball valve. Faster interchangeability (except size 12,5)
Standard couplings for general purpose applications with ball valve shut-off system. Faster proprietary profile ( 1/2" size only is interchangeable according to ISO 7241 part A).
Items
| Size (mm) | PartNumber | Thread | HEX1 | D1 | L1 |
|---|---|---|---|---|---|
| 6,3 | NS 14 GAS F | BSPP 1/4" FEMALE | 19 | 27 | 50 |
| 6,3 | NS 14 NPT F | NPTF 1/4" FEMALE | 19 | 27 | 50 |
| 10 | NS 38 GAS F | BSPP 3/8" FEMALE | 24 | 33 | 59.5 |
| 10 | NS 38 NPT F | NPTF 3/8" FEMALE | 24 | 33 | 59.5 |
| 12,5 | NS 12 GAS F | BSPP 1/2" FEMALE | 27 | 38 | 68 |
| 12,5 | NS 12 NPT F | NPTF 1/2" FEMALE | 27 | 38 | 68 |
| 20 | NS 34 GAS F | BSPP 3/4" FEMALE | 34 | 48 | 82.5 |
| 20 | NS 34 NPT F | NPTF 3/4" FEMALE | 34 | 48 | 82 |
| 20 | NS 34 NPT F V | NPTF 3/4" FEMALE | 34 | 48 | 82.5 |
| 25 | NS 1 GAS F | BSPP 1" FEMALE | 41 | 56 | 96.5 |
| 25 | NS 1 NPT F | NPTF 1" FEMALE | 41 | 56 | 96.5 |
| Size (mm) | PartNumber | Thread | HEX1 | D1 | D3 | L1 |
|---|---|---|---|---|---|---|
| 6,3 | NS 14 GAS M | BSPP 1/4" FEMALE | 19 | 21 | 14.1 | 34.7 |
| 6,3 | NS 14 NPT M | NPTF 1/4" FEMALE | 19 | 21 | 14.1 | 33 |
| 10 | NS 38 GAS M | BSPP 3/8" FEMALE | 24 | 27 | 18.9 | 39 |
| 10 | NS 38 NPT M | NPTF 3/8" FEMALE | 24 | 27 | 18.9 | 39 |
| 12,5 | NS 12 GAS M | BSPP 1/2" FEMALE | 27 | 30 | 20.5 | 46 |
| 12,5 | NS 12 NPT M | NPTF 1/2" FEMALE | 27 | 30 | 20.5 | 46 |
| 20 | NS 34 GAS M | BSPP 3/4" FEMALE | 34 | 38 | 27.9 | 53.5 |
| 20 | NS 34 NPT M | NPTF 3/4" FEMALE | 34 | 38 | 27.9 | 53 |
| 25 | NS 1 GAS M | BSPP 1" FEMALE | 41 | 45 | 31.3 | 63 |
| 25 | NS 1 NPT M | NPTF 1" FEMALE | 41 | 45 | 31.3 | 63 |
