CPV
Applications

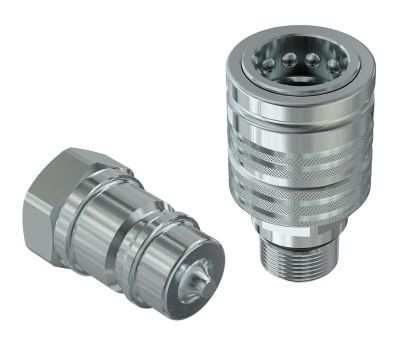

Push-pull female couplings for agriculture, panel mounting
Push-pull couplings, designed for panel mounting installation. A wide range of threaded adapters is available. Breakaway function. ISO 7241 part A interchange.
Items
| Size (mm) | PartNumber | Thread | HEX1 | HEX2 | D1 | L1 |
|---|---|---|---|---|---|---|
| 10 | CPV06 12 GAS F | BSPP 1/2" FEMALE | 24 | 33 | 65.5 | |
| 10 | CPV06 38 GAS F | BSPP 3/8" FEMALE | 24 | 33 | 64.5 | |
| 10 | CPV061/1615 F | M16x1,5 MALE | 24 | 33 | 62 | |
| 10 | CPV062/1215 F | M12x1,5 MALE 6L | 24 | 33 | 60.7 | |
| 10 | CPV062/1615 F | M16x1,5 MALE 10L | 24 | 33 | 61.7 | |
| 10 | CPV067/1415 F | M14x1,5 MALE BULKHEAD SHORT 8L | 24 | 19 | 33 | 76.7 |
| 12,5 | CPV082/1815 F | M18x1,5 MALE 12L | 27 | 38 | 62.3 | |
| 12,5 | CPV082/1615 F | M16x1,5 MALE 10L | 27 | 38 | 63.8 | |
| 12,5 | CPV082/2215 F | M22x1,5 MALE 15L | 27 | 38 | 62.3 | |
| 12,5 | CPV082/2615 F | M26x1,5 MALE 18L | 27 | 38 | 62.3 | |
| 12,5 | CPV087/1815 F | M18x1.5 MALE BULKHEAD SHORT 12L | 27 | 24 | 38 | 77.3 |
| 12,5 | CPV080/2215 F | M22x1,5 FEMALE ORB | 27 | 38 | 66.3 | |
| 12,5 | CPV080/12GAS F | 1/2 BSP FEMALE ORB | 27 | 38 | 66.3 | |
| 12,5 | CPV085/1815 F | M18x1,5 MALE BULKHEAD 12L | 27 | 24 | 38 | 86.3 |
| 12,5 | CPV087/2215 F | M22x1.5 MALE BULKHEAD SHORT 15L | 27 | 38 | 77.3 | |
| 12,5 | CPV083/2015 F | M20x1.5 MALE 12S | 27 | 38 | 62.3 | |
| 12,5 | CPV08 2215 F | M22x1,5 FEMALE | 27 | 38 | 66 | |
| 12,5 | CPV08 38 GAS F | BSPP 3/8" FEMALE | 27 | 30 | 62.3 | |
| 12,5 | CPV080/12SAE F | 3/4"-16 UNF FEMALE ORB | 27 | 38 | 66.3 | |
| 12,5 | CPV080/1815 F | M18x1,5 FEMALE ORB | 27 | 38 | 62.3 | |
| 12,5 | CPV080/38GAS F | 3/8 BSP FEMALE ORB | 27 | 38 | 62.3 | |
| 12,5 | CPV080/58SAE F | 7/8"-14 UNF FEMALE ORB | 27 | 38 | 62.3 | |
| 12,5 | CPV081/12SAE F | 3/4"-16 UNF MALE | 27 | 38 | 62.4 | |
| 12,5 | CPV081/2215 F | M22x1,5 MALE | 27 | 38 | 66.3 | |
| 12,5 | CPV0810/12SAEF | 27 | 38 | 81.3 | ||
| 12,5 | CPV0811/12SAEF | 13/16"-16 UN MALE ORFS | 27 | 38 | 64.1 | |
| 12,5 | CPV0812/12SAEF | 13/16"-16 UN MALE BULKHEAD ORFS | 27 | 27 | 38 | 85.8 |
| 12,5 | CPV0812/58SAEF | 1"-14 UNS MALE BULKHEAD ORFS | 34 | 34 | 38 | 96 |
| 12,5 | CPV0814/12SAEF | 3/4"-16 UN MALE BULKHEAD JIC | 27 | 27 | 38 | 87.9 |
| 12,5 | CPV0816/12GASF | 60° 1/2 BSPP MALE | 27 | 38 | 65 | |
| 12,5 | CPV0816/1815 F | 60° 18x1,5 METRIC MALE | 27 | 38 | 65.3 | |
| 12,5 | CPV082/1415 F | M14x1,5 MALE 8L | 27 | 38 | 64.3 | |
| 12,5 | CPV082/2015 F | M20x1,5 MALE 12S | 27 | 38 | 63.3 | |
| 12,5 | CPV083/2415 F | M24x1,5 MALE 16S | 27 | 38 | 65.3 | |
| 12,5 | CPV084/12GAS F | 60° 1/2" BSPP MALE BULKHEAD | 27 | 27 | 38 | 87.8 |
| 12,5 | CPV084/38GAS F | 60° 3/8" BSPP MALE BULKHEAD | 27 | 24 | 38 | 87.8 |
| 12,5 | CPV085/1615 F | M16x1,5 MALE BULKHEAD 10L | 27 | 22 | 38 | 86.3 |
| 12,5 | CPV085/2215 F | M22x1,5 MALE BULKHEAD 15L | 27 | 27 | 38 | 86.3 |
| 12,5 | CPV086/2015 F | M20x1.5 MALE BULKHEAD 12S | 27 | 27 | 40 | 86.3 |
| 12,5 | CPV087/1615 F | M16x1,5 MALE BULKHEAD SHORT 10L | 27 | 24 | 38 | 78.8 |
| 12,5 | CPV087/2615 F | M26x1.5 MALE BULKHEAD SHORT 18L | 30 | 36 | 40 | 90.8 |
| 12,5 | CPV0811/58SAEF | 1"-14 UNS MALE ORFS | 27 | 38 | 66.8 | |
| 12,5 | CPV0827/58SAEF | 1" - 14 UNS | 30 | 38 | 69.3 | |
| 25 | CPV16 1GAS F | BSPP 1" FEMALE | 42 | 54 | 102.3 | |
| 25 | CPV16 1SAE F | 1-5/16"-12 UN FEMALE ORB | 42 | 54 | 100.3 | |
| 25 | CPV16 34GAS F | BSPP 3/4" FEMALE | 38 | 54 | 97.3 | |
| 25 | CPV160/1GAS F | 1 BSP FEMALE ORB | 42 | 54 | 100.3 | |
| 25 | CPV160/34GAS F | 3/4 BSP FEMALE ORB | 38 | 54 | 97.3 | |
| 25 | CPV162/2615 F | M26x1,5 MALE 18L | 38 | 54 | 96.3 | |
| 25 | CPV162/302 F | M30x2 MALE 22L | 38 | 54 | 96.8 | |
| 25 | CPV163/302 F | M30x2 MALE 20S | 38 | 54 | 100.3 | |
| 25 | CPV165/2615 F | M26x1,5 MALE BULKHEAD 18L | 38 | 36 | 54 | 124.3 |
| 25 | CPV165/302 F | M30x2 MALE BULKHEAD 22L | 41 | 41 | 54 | 116.8 |
| 25 | CPV165/362 F | M36x2 MALE BULKHEAD 28L | 42 | 46 | 54 | 113.8 |
