4SKHF
Applications

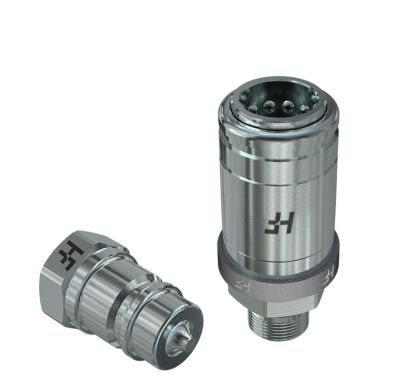

Compact push-pull female couplings for agriculture with higher flow rate, up to 250 l/min
Compact push-pull couplings for application with higher flow rate and limited space, connectable under residual pressure in both male and female side. Can be screwed directly into valve ports or rigid pipes. Breakaway function. ISO 7241 part A interchange. Flow rate up to 250 l/min. Reduced dimensions: 15 mm shorter than standard version.
Items
| Size (mm) | PartNumber | Thread |
|---|---|---|
| 12,5 | 4SKHF0821/2215 F | M22x1,5 MALE |
| 12,5 | 4SKHF081/2215 F | M22x1,5 MALE |
| 12,5 | 4SKHF087/1815 F | M18x1.5 MALE BULKHEAD SHORT 12L |
| 12,5 | 4SKHF087/2215 F | M22x1.5 MALE BULKHEAD SHORT 15L |
| 12,5 | 4SKHF087/2615 F | M26x1.5 MALE BULKHEAD SHORT 18L |
| Size (mm) | PartNumber | Thread |
|---|---|---|
| 12,5 | NVHF08 GAS M | BSPP 1/2" FEMALE |
| 12,5 | CNVHF08 38GAS M | BSPP 3/8" FEMALE |
| 12,5 | CNVHF082/1815 M | M18x1,5 MALE 12L |
| 12,5 | CNVHF082/2215 M | M22x1,5 MALE 15L |
| 12,5 | CNVHF082/2615 M | M26x1,5 MALE 18L |
