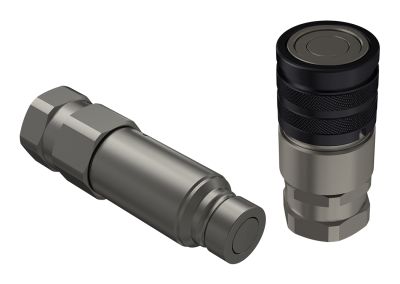

Flat face couplings, ISO 16028, connection under pressure

Flat face couplings, connectable under residual pressure. Real 35 MPa (5076 psi) max working pressure. ISO 16028 interchange. Zinc-Nickel plating. It is possible to couple either a 3FFH female half under pressure with a FFH male half, or a 3FFH male half under pressure with a FFH female half.

Size (mm)	PartNumber	Thread	HEX1	D1	L1
10	3FFH06 38GAS F	BSPP 3/8" FEMALE	27	30	75
10	3FFH06-2/2215F	M22x1,5 MALE 15L	27	30	81.9
12,5	3FFH08 12NPT F	NPTF 1/2" FEMALE	34	38	81.3
12,5	3FFH08 12GAS F	BSPP 1/2" FEMALE	34	38	81.3
12,5	3FFH08 34SAE FA	1-1/16"-12 UN FEMALE ORB	34	38	86.8
12,5	3FFH08 58SAE F	7/8"-14 UNF FEMALE ORB	34	38	81.3
12,5	3FFH08-61/34SFS	1-1/16"-12 UN 90° MALE	34	38	100.8
12,5	3FFH08-61/38SFS	9/16"-18 UN 90° MALE	34	38	100.8
20	3FFH12 1NPT F	NPTF 1" FEMALE	42	48	104
20	3FFH12 34GAS F	BSPP 3/4" FEMALE	42	48	100

Size (mm)	PartNumber	Thread	HEX1	HEX2	D1	D3	L1
10	3FFH06 12GAS M	BSPP 1/2" FEMALE	30		33	19.7	101.8
10	3FFH06 12SAE M	3/4"-16 UNF FEMALE ORB	30		33	19.7	100.3
10	3FFH06 38GAS M	BSPP 3/8" FEMALE	30		30	19.7	96.8
10	3FFH06 38NPT M	NPTF 3/8" FEMALE	30		33	19.7	96.8
12,5	3FFH08 12GAS M	BSPP 1/2" FEMALE	34		37	24.5	115.7
12,5	3FFH08 12NPT M	NPTF 1/2" FEMALE	34		37	24.5	117.7
12,5	3FFH08 12SAE M	3/4"-16 UNF FEMALE ORB	34		37	24.5	115.7
12,5	3FFH08 34GAS M	BSPP 3/4" FEMALE	34		37	24.5	118.7
12,5	3FFH08 34SAE M	1-1/16"-12 UN FEMALE ORB	34		37	24.5	121.7
12,5	3FFH08 58SAE M	7/8"-14 UNF FEMALE ORB	34		37	24.5	116.7
12,5	3FFH08-12/34S M	1-3/16"-12 UN MALE BULKHEAD ORFS	34	38	37	24.5	146.2
12,5	3FFH08-12/58S M	1"-14 UNS MALE BULKHEAD ORFS	34	34	37	24.5	144.7
12,5	3FFH08-14/12S M	3/4"-16 UN MALE BULKHEAD JIC	34	27	37	24.5	140.8
12,5	3FFH08-14/34S M	1-1/16"-12 UN MALE BULKHEAD JIC	34	34	37	24.5	149.1
12,5	3FFH08-14/34SMB	1-1/16"-12 UN MALE BULKHEAD JIC	34		37	24.5	149.1
12,5	3FFH08-14/58S M	7/8"-14 UNF MALE BULKHEAD JIC	34	27	37	24.5	144.3
16	3FFH10 34NPT M	NPTF 3/4" FEMALE	41		45	27	123.8
16	3FFH10 34SAE M	1-1/16"-12 UN FEMALE ORB	41		45	27	126.8
20	3FFH12 1GAS M	BSPP 1" FEMALE	42		46	29.95	128.4
20	3FFH12 34GAS M	BSPP 3/4" FEMALE	42		46	29.95	128.4
20	3FFH12 34SAE M	1-1/16"-12 UN FEMALE ORB	42		46	29.95	128.4
20	3FFH12-1/34S M	1-1/16"-12 UN MALE	42		46	29.95	128
