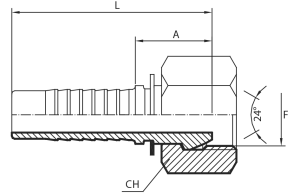

Straight Metric Female 24° cone - French type
| CODE | DN | INCHES | DIAM | D | L |
|---|---|---|---|---|---|
| FE0413F | 6 | 1/4" | 4 | M20x1.5 | 23.5 |
| FE0513F | 8 | 5/16" | 5 | M20x1.5 | 23.5 |
| FE0613F | 10 | 3/8" | 6 | M20x1.5 | 23.5 |
| FE0617F | 10 | 3/8" | 6 | M24x1.5 | 27 |
| FE0817F | 12 | 1/2" | 8 | M24x1.5 | 27.5 |
| FE0821F | 12 | 1/2" | 8 | M30x1.5 | 31 |
| FE1021F | 16 | 5/8" | 10 | M30x1.5 | 31 |
| FE1221F | 20 | 3/4" | 12 | M30x1.5 | 31.5 |
| FE1227F | 20 | 3/4" | 12 | M36x1.5 | 34 |
| FE1633F | 25 | 1" | 16 | M45x1.5 | 34 |
| FE2033F | 32 | 1.1/4" | 20 | M45x1.5 | 34 |
* The figures and technical data set out in the tables are only intended as approximations.
