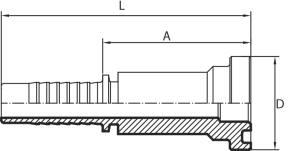

Straight flange SUPERCAT (one-piece)
| CODE | DN | INCHES | DIAM | D | L |
|---|---|---|---|---|---|
| FDS1212I | 20 | 3/4" | 12 | 3/4" | |
| FDS1216I | 20 | 3/4" | 12 | 1" | 70 |
| FDS1616I | 25 | 1" | 16 | 1" | 72 |
| FDS1620I | 25 | 1" | 16 | 1.1/4" | 75 |
| FDS2020I | 32 | 1.1/4" | 20 | 1.1/4" | 71 |
| FDS2024I | 32 | 1.1/4" | 20 | 1.1/2" | 80 |
| FDS2424I | 40 | 1.1/2" | 24 | 1.1/2" | 80 |
* The figures and technical data set out in the tables are only intended as approximations.
