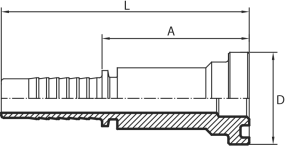

Straight Flange 6000 PSI (one-piece)
| CODE | DN | INCHES | DIAM | D | L |
|---|---|---|---|---|---|
| FDP0808I | 12 | 1/2" | 8 | 1/2" | 50 |
| FDP0812I | 12 | 1/2" | 8 | 3/4" | 55 |
| FDP1008I | 16 | 5/8" | 10 | 1/2" | 50 |
| FDP1012I | 16 | 5/8" | 10 | 3/4" | 51 |
| FDP1208I | 20 | 3/4" | 12 | 1/2" | 53 |
| FDP1212I | 20 | 3/4" | 12 | 3/4" | 53 |
| FDP1216I | 20 | 3/4" | 12 | 1" | 64 |
| FDP1612I | 25 | 1" | 16 | 3/4" | 64 |
| FDP1616I | 25 | 1" | 16 | 1" | 66 |
| FDP1620I | 25 | 1" | 16 | 1.1/4" | 71 |
| FDP2016I | 32 | 1.1/4" | 20 | 1" | 66 |
| FDP2020I | 32 | 1.1/4" | 20 | 1.1/4" | 67 |
| FDP2024I | 32 | 1.1/4" | 20 | 1.1/2" | 78 |
| FDP2424I | 40 | 1.1/2" | 24 | 1.1/2" | 78 |
| FDP2432I | 40 | 1.1/2" | 24 | 2" | 73 |
| FDP3232I | 50 | 2" | 32 | 2" | 73 |
* The figures and technical data set out in the tables are only intended as approximations.
