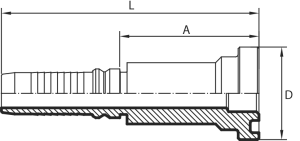

Straight Flange 3000 PSI (one-piece) - INTERLOCK
| CODE | DN | INCHES | DIAM | D | L |
|---|---|---|---|---|---|
| KFDL1212I | 20 | 3/4" | 12 | 3/4" | 56.7 |
| KFDL1216I | 20 | 3/4" | 12 | 1" | 48.7 |
| KFDL1612I | 25 | 1" | 16 | 3/4" | 47.6 |
| KFDL1616I | 25 | 1" | 16 | 1" | 47.6 |
| KFDL1620I | 25 | 1" | 16 | 1.1/4" | 64.6 |
| KFDL2020I | 32 | 1.1/4" | 20 | 1.1/4" | 68.7 |
| KFDL2024I | 32 | 1.1/4" | 20 | 1.1/2" | 78.7 |
| KFDL2424I | 40 | 1.1/2" | 24 | 1.1/2" | 68.5 |
| KFDL2432I | 40 | 1.1/2" | 24 | 2" | 70.5 |
| KFDL3232I | 50 | 2" | 32 | 2" | 70.5 |
* The figures and technical data set out in the tables are only intended as approximations.
