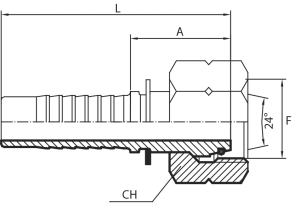

O-ring straight metric female 24° cone - L type
| CODE | DN | INCHES | DIAM | D | L |
|---|---|---|---|---|---|
| FE0312L6 | 5 | 3/16" | 3 | M12x1.5 | 6 |
| FE0314L8 | 5 | 3/16" | 3 | M14x1.5 | 8 |
| FE0412L6 | 6 | 1/4" | 4 | M12x1.5 | 6 |
| FE0414L8 | 6 | 1/4" | 4 | M14x1.5 | 8 |
| FE0416L10 | 6 | 1/4" | 4 | M16x1.5 | 10 |
| FE0418L12 | 6 | 1/4" | 4 | M18x1.5 | 12 |
| FE0514L08 | 8 | 5/16" | 5 | M14x1.5 | 8 |
| FE0516L10 | 8 | 5/16" | 5 | M16x1.5 | 10 |
| FE0518L12 | 8 | 5/16" | 5 | M18x1.5 | 12 |
| FE0616L10 | 10 | 3/8" | 6 | M16x1.5 | 10 |
| FE0618L12 | 10 | 3/8" | 6 | M18x1.5 | 12 |
| FE0622L15 | 10 | 3/8" | 6 | M22x1.5 | 15 |
| FE0818L12 | 12 | 1/2" | 8 | M18x1.5 | 12 |
| FE0822L15 | 12 | 1/2" | 8 | M22x1.5 | 15 |
| FE0826L18 | 12 | 1/2" | 8 | M26x1.5 | 18 |
| FE1026L18 | 16 | 5/8" | 10 | M26x1.5 | 18 |
| FE1030L22 | 16 | 5/8" | 10 | M30x2 | 22 |
| FE1226L18 | 20 | 3/4" | 12 | M26x1.5 | 18 |
| FE1230L22 | 20 | 3/4" | 12 | M30x2 | 22 |
| FE1636L28 | 25 | 1" | 16 | M36x2 | 28 |
| FE2045L35 | 32 | 1.1/4" | 20 | M45x2 | 35 |
| FE2452L42 | 40 | 1.1/2" | 24 | M52x2 | 42 |
* The figures and technical data set out in the tables are only intended as approximations.
