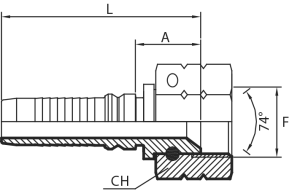

JIC straight Female 74° cone (thrust-wire nut) - INTERLOCK
| CODE | DN | INCHES | DIAM | D | L |
|---|---|---|---|---|---|
| KFDJ1212 | 20 | 3/4" | 12 | 1.1/16" | 12 |
| KFDJ1214 | 20 | 3/4" | 12 | 1.3/16" | 12 |
| KFDJ1216 | 20 | 3/4" | 12 | 1.5/16" | 12 |
| KFDJ1616 | 25 | 1" | 16 | 1.5/16" | 12 |
| KFDJ1620 | 25 | 1" | 16 | 1.5/8" | 12 |
| KFDJ2020 | 32 | 1.1/4" | 20 | 1.5/8" | 12 |
| KFDJ2024 | 32 | 1.1/4" | 20 | 1.7/8" | 12 |
| KFDJ2424 | 40 | 1.1/2" | 24 | 1.7/8" | 12 |
| KFDJ3232 | 50 | 2" | 32 | 2.1/2" | 12 |
* The figures and technical data set out in the tables are only intended as approximations.
