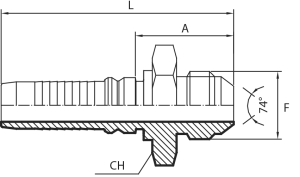

JIC Male 74° cone - INTERLOCK
| CODE | DN | INCHES | DIAM | D | L |
|---|---|---|---|---|---|
| KMJ1212 | 20 | 3/4" | 12 | 1.1/16" | 12 |
| KMJ1214 | 20 | 3/4" | 12 | 1.3/16" | 12 |
| KMJ1216 | 20 | 3/4" | 12 | 1.5/16" | 12 |
| KMJ1616 | 25 | 1" | 16 | 1.5/16" | 12 |
| KMJ1620 | 25 | 1" | 16 | 1.5/8" | 12 |
| KMJ2020 | 32 | 1.1/4" | 20 | 1.5/8" | 12 |
| KMJ2024 | 32 | 1.1/4" | 20 | 1.7/8" | 12 |
| KMJ2424 | 40 | 1.1/2" | 24 | 1.7/8" | 12 |
| KMJ3232 | 50 | 2" | 32 | 2.1/2" | 12 |
* The figures and technical data set out in the tables are only intended as approximations.
