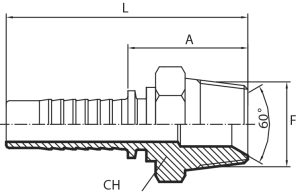

BSPT Male 60° cone
| CODE | DN | INCHES | DIAM | D | L |
|---|---|---|---|---|---|
| MGK0302 | 5 | 3/16" | 3 | 1/8" | 28 |
| MGK0304 | 5 | 3/16" | 3 | 1/4" | 19 |
| MGK0402 | 6 | 1/4" | 4 | 1/8" | 28 |
| MGK0404 | 6 | 1/4" | 4 | 1/4" | 19 |
| MGK0406 | 6 | 1/4" | 4 | 3/8" | 19 |
| MGK0504 | 8 | 5/16" | 5 | 1/4" | 19 |
| MGK0506 | 8 | 5/16" | 5 | 3/8" | 19 |
| MGK0604 | 10 | 3/8" | 6 | 1/4" | 19 |
| MGK0606 | 10 | 3/8" | 6 | 3/8" | 19 |
| MGK0608 | 10 | 3/8" | 6 | 1/2" | 14 |
| MGK0806 | 12 | 1/2" | 8 | 3/8" | 19 |
| MGK0808 | 12 | 1/2" | 8 | 1/2" | 14 |
| MGK1008 | 16 | 5/8" | 10 | 1/2" | 14 |
| MGK1012 | 16 | 5/8" | 10 | 3/4" | 14 |
| MGK1212 | 20 | 3/4" | 12 | 3/4" | 14 |
| MGK1216 | 20 | 3/4" | 12 | 1" | 11 |
| MGK1616 | 25 | 1" | 16 | 1" | 11 |
| MGK1620 | 25 | 1" | 16 | 1.1/4" | 11 |
| MGK2020 | 32 | 1.1/4" | 20 | 1.1/4" | 11 |
| MGK2024 | 32 | 1.1/4" | 20 | 1.1/2" | 11 |
| MGK2424 | 40 | 1.1/2" | 24 | 1.1/2" | 11 |
| MGK3232 | 50 | 2" | 32 | 2' | 11 |
* The figures and technical data set out in the tables are only intended as approximations.
