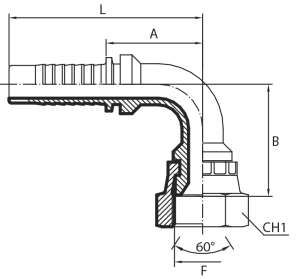

90° TOYOTA Female 60° cone
| CODE | DN | INCHES | DIAM | D | L |
|---|---|---|---|---|---|
| F90T0404 | 6 | 1/4" | 4 | 1/4" | 19 |
| F90T0606 | 10 | 3/8" | 6 | 3/8" | 19 |
| F90T0808 | 12 | 1/2" | 8 | 1/2" | 14 |
| F90T1212 | 20 | 3/4" | 12 | 3/4" | 14 |
| F90T1616 | 25 | 1" | 16 | 1" | 11 |
| F90T2020 | 32 | 1.1/4" | 20 | 1.1/2" | 11 |
| F90T2424 | 40 | 1.1/2" | 24 | 1.1/2" | 11 |
* The figures and technical data set out in the tables are only intended as approximations.
