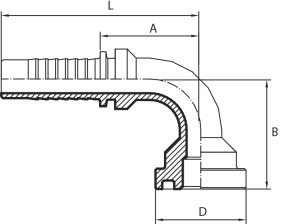

90° SUPERCAT Flange (one-piece)
| CODE | DN | INCHES | DIAM | D | L |
|---|---|---|---|---|---|
| F90S1212I | 20 | 3/4" | 12 | 3/4" | 57 |
| F90S1216I | 20 | 3/4" | 12 | 1" | 57 |
| F90S1616I | 25 | 1" | 16 | 1" | 77 |
| F90S1620I | 25 | 1" | 16 | 1.1/4" | 77 |
| F90S2020I | 32 | 1.1/4" | 20 | 1.1/4" | 89 |
| F90S2024I | 32 | 1.1/4" | 20 | 1.1/2" | 89 |
| F90S2424I | 40 | 1.1/2" | 24 | 1.1/2" | 101 |
* The figures and technical data set out in the tables are only intended as approximations.
