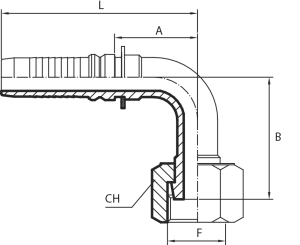

90° ORFS Female long drop - Interlock
| CODE | DN | INCHES | DIAM | D | L |
|---|---|---|---|---|---|
| KF90ORFS1214LD | 20 | 3/4" | 12 | 1.3/16" | 12 |
| KF90ORFS1615LD | 25 | 1" | 16 | 1.7/16" | 12 |
| KF90ORFS2021LD | 32 | 1.1/4" | 20 | 1.11/16" | 12 |
* The figures and technical data set out in the tables are only intended as approximations.
