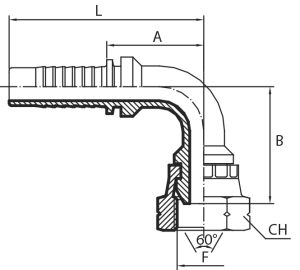

90° Metric Female swept elbow 60° cone
| CODE | DN | INCHES | DIAM | D | L |
|---|---|---|---|---|---|
| F90M0310 | 5 | 3/16" | 3 | M10x1 | 23 |
| F90M0312 | 5 | 3/16" | 3 | M12x1.5 | 23 |
| F90M0410 | 6 | 1/4" | 4 | M10x1 | 23 |
| F90M0412 | 6 | 1/4" | 4 | M12x1.5 | 23 |
| F90M0414 | 6 | 1/4" | 4 | M14x1.5 | 23 |
| F90M0416 | 6 | 1/4" | 4 | M16x1.5 | 23 |
| F90M0418 | 6 | 1/4" | 4 | M18x1.5 | 23 |
| F90M0514 | 8 | 5/16" | 5 | M14x1.5 | 31.5 |
| F90M0516 | 8 | 5/16" | 5 | M16x1.5 | 31.5 |
| F90M0518 | 8 | 5/16" | 5 | M18x1.5 | 31.5 |
| F90M0520 | 8 | 5/16" | 5 | M20x1.5 | 31.5 |
| F90M0614 | 10 | 3/8" | 6 | M14x1.5 | 33 |
| F90M0616 | 10 | 3/8" | 6 | M16x1.5 | 33 |
| F90M0618 | 10 | 3/8" | 6 | M18x1.5 | 33 |
| F90M0620 | 10 | 3/8" | 6 | M20x1.5 | 33 |
| F90M0622 | 10 | 3/8" | 6 | M22x1.5 | 33 |
| F90M0818 | 12 | 1/2" | 8 | M18x1.5 | 39 |
| F90M0820 | 12 | 1/2" | 8 | M20x1.5 | 39 |
| F90M0822 | 12 | 1/2" | 8 | M22x1.5 | 39 |
| F90M0824 | 12 | 1/2" | 8 | M24x1.5 | 39 |
| F90M0826 | 12 | 1/2" | 8 | M26x1.5 | 39 |
| F90M1026 | 16 | 5/8" | 10 | M26x1.5 | 49 |
| F90M1027 | 16 | 5/8" | 10 | M27x1.5 | 49 |
| F90M1226 | 20 | 3/4" | 12 | M26x1.5 | 53.5 |
| F90M1227 | 20 | 3/4" | 12 | M27x1.5 | 53.5 |
| F90M1230 | 20 | 3/4" | 12 | M30x1.5 | 53.5 |
| F90M1638 | 25 | 1" | 16 | M38x1.5 | 73 |
| F90M2045 | 32 | 1.1/4" | 20 | M45x1.5 | 93 |
| F90M2452 | 40 | 1.1/2" | 24 | M52x1.5 | 99 |
* The figures and technical data set out in the tables are only intended as approximations.
