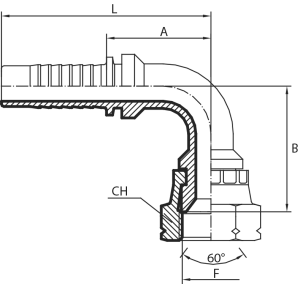

90° “KOMATSU” metric Female 60° cone
| CODE | DN | INCHES | DIAM | D | L |
|---|---|---|---|---|---|
| F90K0414 | 6 | 1/4" | 4 | M14x1.5 | 23 |
| F90K0416 | 6 | 1/4" | 4 | M16x1.5 | 23 |
| F90K0516 | 8 | 5/16" | 5 | M16x1.5 | 31.5 |
| F90K0614 | 10 | 3/8" | 6 | M14x1.5 | 33 |
| F90K0616 | 10 | 3/8" | 6 | M16x1.5 | 33 |
| F90K0618 | 10 | 3/8" | 6 | M18x1.5 | 33 |
| F90K0818 | 12 | 1/2" | 8 | M18x1.5 | 39 |
| F90K0820 | 12 | 1/2" | 8 | M20x1.5 | 39 |
| F90K0822 | 12 | 1/2" | 8 | M22x1.5 | 39 |
| F90K0824 | 12 | 1/2" | 8 | M24x1.5 | 39 |
| F90K1022 | 16 | 5/8" | 10 | M22x1.5 | 49 |
| F90K1024 | 16 | 5/8" | 10 | M24x1.5 | 49 |
| F90K1230 | 20 | 3/4" | 12 | M30x1.5 | 53.5 |
| F90K1633 | 25 | 1" | 16 | M33x1.5 | 73 |
| F90K2036 | 32 | 1.1/4" | 20 | M36x1.5 | 89 |
| F90K2442 | 40 | 1.1/2" | 24 | M42x1.5 | 101 |
* The figures and technical data set out in the tables are only intended as approximations.
