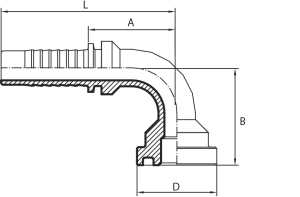

90° Flange 6000 PSI (one-piece)
| CODE | DN | INCHES | DIAM | D | L |
|---|---|---|---|---|---|
| F90P0808I | 12 | 1/2" | 8 | 1/2" | 39 |
| F90P0812I | 12 | 1/2" | 8 | 3/4" | 39 |
| F90P1008I | 16 | 5/8" | 10 | 1/2" | 49 |
| F90P1012I | 16 | 5/8" | 10 | 3/4" | 49 |
| F90P1208I | 20 | 3/4" | 12 | 1/2" | 57 |
| F90P1212I | 20 | 3/4" | 12 | 3/4" | 57 |
| F90P1216I | 20 | 3/4" | 12 | 1" | 57 |
| F90P1612I | 25 | 1" | 16 | 3/4" | 77 |
| F90P1616I | 25 | 1" | 16 | 1" | 77 |
| F90P1620I | 25 | 1" | 16 | 1.1/4" | 77 |
| F90P2016I | 32 | 1.1/4" | 20 | 1" | 89 |
| F90P2020I | 32 | 1.1/4" | 20 | 1.1/4" | 89 |
| F90P2024I | 32 | 1.1/4" | 20 | 1.1/2" | 89 |
| F90P2424I | 40 | 1.1/2" | 24 | 1.1/2" | 101 |
| F90P2432I | 40 | 1.1/2" | 24 | 2" | 101 |
| F90P3232I | 50 | 2" | 32 | 2" | 144 |
* The figures and technical data set out in the tables are only intended as approximations.
