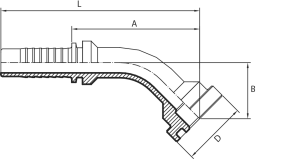

45° SUPERCAT Flange (one-piece)
| CODE | DN | INCHES | DIAM | D | L |
|---|---|---|---|---|---|
| F45S1212I | 20 | 3/4" | 12 | 3/4" | 74 |
| F45S1216I | 20 | 3/4" | 12 | 1" | 78 |
| F45S1616I | 25 | 1" | 16 | 1" | 94 |
| F45S1620I | 25 | 1" | 16 | 1.1/4" | 97 |
| F45S2020I | 32 | 1.1/4" | 20 | 1.1/4" | 107 |
| F45S2024I | 32 | 1.1/4" | 20 | 1.1/2" | 108 |
| F45S2424I | 40 | 1.1/2" | 24 | 1.1/2" | 120 |
* The figures and technical data set out in the tables are only intended as approximations.
