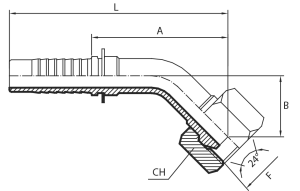

45° metric Female swept elbow 24° cone - French type
| CODE | DN | INCHES | DIAM | D | L |
|---|---|---|---|---|---|
| F45E0413F | 6 | 1/4" | 4 | M20x1.5 | 50 |
| F45E0513F | 8 | 5/16" | 5 | M20x1.5 | 52 |
| F45E0613F | 10 | 3/8" | 6 | M20x1.5 | 58.5 |
| F45E0617F | 10 | 3/8" | 6 | M24x1.5 | 65.5 |
| F45E0817F | 12 | 1/2" | 8 | M24x1.5 | 68.5 |
| F45E0821F | 12 | 1/2" | 8 | M30x1.5 | 68 |
| F45E1021F | 16 | 5/8" | 10 | M30x1.5 | 68 |
| F45E1221F | 20 | 3/4" | 12 | M30x1.5 | 69 |
| F45E1227F | 20 | 3/4" | 12 | M36x1.5 | 73 |
| F45E1633F | 25 | 1" | 16 | M45x1.5 | 101 |
| F45E2033F | 32 | 1.1/4" | 20 | M45x1.5 | 107 |
* The figures and technical data set out in the tables are only intended as approximations.
