HDT 75-84-96-108 - HDT series

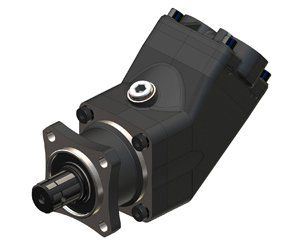

Family Description: New compact bent-axis piston pumps available in the displacements 75cc,84cc, 96cc and 108 cc their special body shape allow an easier installation in case of clearance problems, particularly when the pumps are fitted on coaxial pto's and the truck propeller shaft has big dimensions.
| CODE | PUMP TYPE | DISPLACEMENT CC | ROTATION | WEIGHT (Kg) |
|---|---|---|---|---|
| 60200110753 | HDT 75 | 75,5 | RIGHT | 14,860 |
| 60200110759 | HDT 75 | 75,5 | LEFT | 14,860 |
| 60200110843 | HDT 84 | 84,2 | RIGHT | 14,860 |
| 60200110849 | HDT 84 | 84,2 | LEFT | 14,800 |
| 60200110963 | HDT 96 | 95,5 | RIGHT | 14,700 |
| 60200110969 | HDT 96 | 95,5 | LEFT | 14,700 |
| 60200111083 | HDT 108 | 107 | RIGHT | 14,590 |
| 60200111089 | HDT 108 | 107 | LEFT | 14,560 |
* Le cifre e i dati tecnici riportati nelle tabelle sono intesi solo come approssimazioni.
