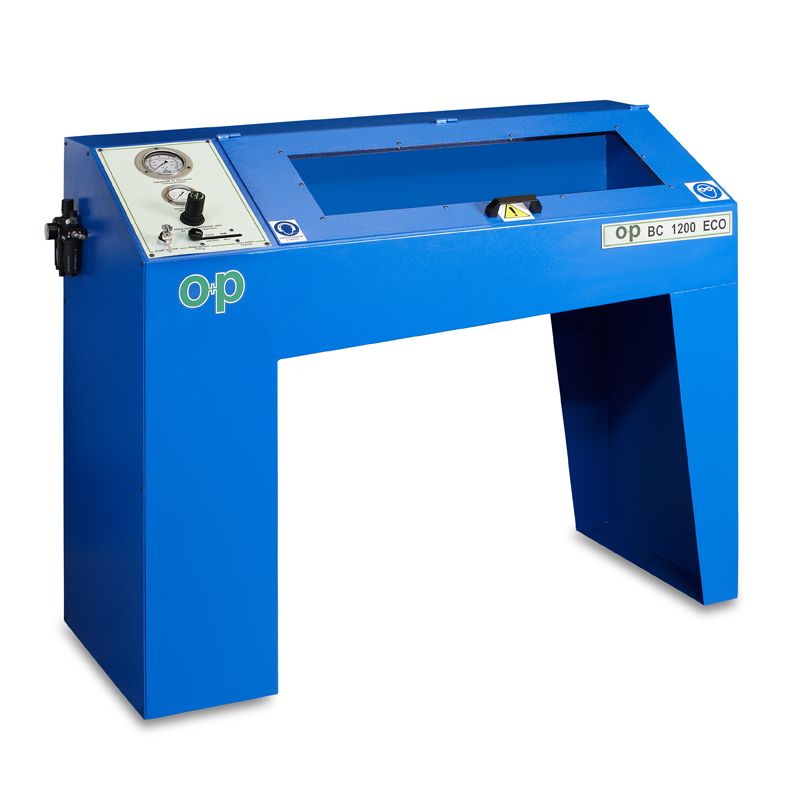

BC1200ECO / BC1200ECO
Test bench up to 1200 bar, small and easy to use, provided with a Ø 1/4'' gas quick coupling, analogue pressure gauge and pneumo-hydraulic pump.
Pressure control and discharge, testing and liquid filling are manually made.
Product specifications could be modified without prior notice.
| STATIC PRESSURE | 1200 bar (17400 psi) |
| MIN. STARTING PRESSURE | 70 bar (1015 psi) |
| PRESSURE CONTROL | manual |
| TEST | manual |
| TYPE OF DRIVE | pneumatic intensifier |
| TEST LIQUID | OIL |
| N. MANIFOLDS | 1 |
| N. MANIFOLD CONNECTIONS | special quick couplings |
| LIQUID FILLING | manual |
| FILLING FLOW | 0,3 Lt/min |
| PRESSURE DISCHARGE | manual |
| STANDARD CHAMBER DIMENSIONS | 1200x550x250 mm (47.250''x21.650''x9.800'') |
| BENCH DIMENSIONS | 1500x600x1200 mm (59.055''x23.600''x47.250'') |
| TANK | 30 Lt |
| WEIGHT WITHOUT OIL | 165 Kg (363 Lbs) |
| SHOCK-PROOF CHECKING WINDOWS | incl. |
| SUCTION FILTER | incl. |
| DELIVERY FILTER | incl. |
| OIL PROTECTING MESH | incl. |
| ADAPTER WITH ¼'' QUICK COUPLING | incl. |
| ADAPTER | OPTIONAL 3/8''-1/2''-3/4''-1''-1''1/4-1''1/2-2'' |
