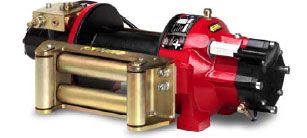

SERIE EPH 3600FN

Performance

  • Gear ratio 5,3:1
  • Pulling capacity 1st layer 3600 kg. [8000 lbs.]
  • Speed line (based on 60 lt/min. [16 gpm] oil supply):
  • 1st layer 16,5 mt./min. [54,1 Ft./min.]
  • 5th layer 28,4 mt./min. [93,2 Ft./min.]

Features

  • Single stage hardened steel planetary gears in oil bath
  • Hydraulic multi disc negative brake system
  • Over-centre valve
  • Manual Clutch for drum Freespooling
  • Hydraulic orbital motor
  • Drum length (distance between drum flanges):
  • EPH 3600 FN standard drum 200 mm [7,9 in]
  • EPH/L 3600 FN long drum 252 mm [9,9 in]
  • Drum barrel dia.102 mm [4,0 in]
  • Wire rope recommended dia.10 mm [3/8”]
  • Wire rope recommended dia.12 mm  VBG 8 TÜV

Compliance

  • CE Machinery Directive  98/37/EEC
  • TÜV Süddeutschland certification according:
    EN ISO 12100 - 1:2003 EN ISO 12100 - 2:2003 BGV D 8: 1996

Accessories

  • Galvanized Heavy-duty roller fairlead (rollers in steel)
  • Galvanized level winder
  • Air clutch for drum Frees-pooling
