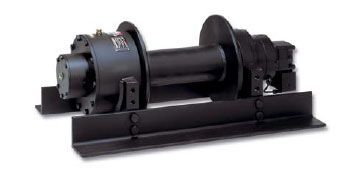

SERIE EPH 13200

Performance

  • Gear ratio 16,68:1
  • Pulling capacity 1st layer 13200 kg. [29100 lbs.]
  • Speed line (based on 75 lt/min. [20 gpm] oil supply):
    1st layer 7,4 mt./min. [24,3 ft./min.]
    5th layer 14,0 mt./min. [45,9 ft./min.]

Features

  • Two stage hardened steel planetary gears in oil bath
  • Hydraulic multi disc negative brake system
  • Over-centre valve
  • Air Clutch for drum Freespooling
  • Standard mounting angles
  • Hydraulic orbital motor
  • Drum length (distance between drum flanges):
    EPH 13200 standard drum 335 mm [13,2 in]
  • Drum barrel dia.127 mm [5,0 in]
  • Wire rope recommended dia.18 mm [11/16”]

Compilance

CE Machinery Directive  98/37/EEC

Accessories

  • Galvanized Heavy-duty roller fairlead (rollers on bearings)
  • Galvanized level winder (roller on bearings)
