Fm 40 Series

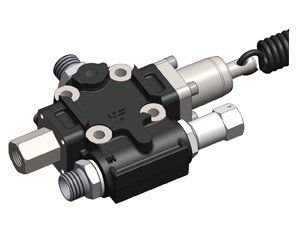

Mechanical tipping valve operated by cable controls series LINEA to suit light duty tipper trucks. Open center hydraulic scheme according to CE standards. - Built-in check valve and adjustable relief valve. - Either Chassis or tank (DSM) mounting options. - Mechanical Direct End- of-stroke with anti-shock spring. - Ready for pressur signal switch mounting. - Galvanized body and nickel spool. - Compact size. - Guaranteed for oil temperature range -25 to 80 °C, viscosity range 12 to 100 cSt and oil filtering 25µm.
| CODE | DESCRIPTION | WEIGHT (Kg) |
|---|---|---|
| 12101000000 | Dvt.fm40 Ce Innesto A Baionetta | 2,7400 |
* The figures and technical data set out in the tables are only intended as approximations.
