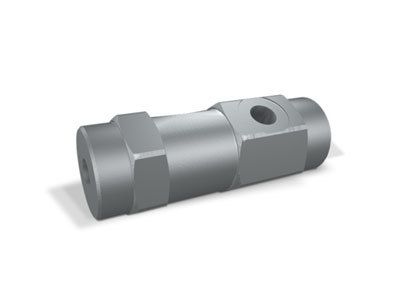

VBPSL
VBPSL 1/4” - VBPSL 3/8” - VBPSL 1/2” - VBPSL 3/4” - VBPSL 1”
3 WAYS SINGLE PILOT OPERATED CHECK VALVES, IN LINE
Use and Operation
These valves are used to block the cylinder in one direction. The flow is free in one direction and blocked in the reverse direction until pilot pressure is applied.
Materials and Features
- Body: zinc-plated steel
- Internal Parts: hardened and ground steel
- Seals: BUNA N standard
- Poppet Type: any leakage
Applications

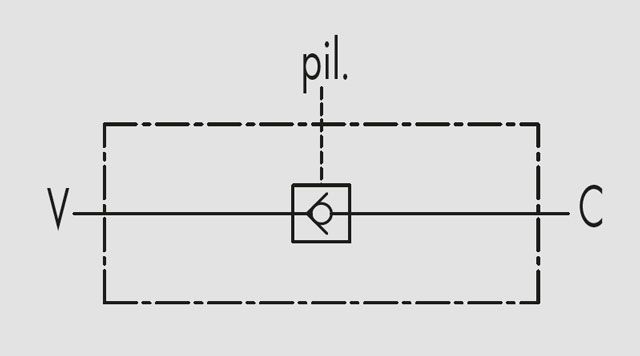

Connect V to the pressure flow, C to the actuator’s side you want the flow to be blocked and Pil to the pilot line.
On Request
- 8 Bar spring
Code:
V0201 - V0202 - V0203 - V0204 - V0205
