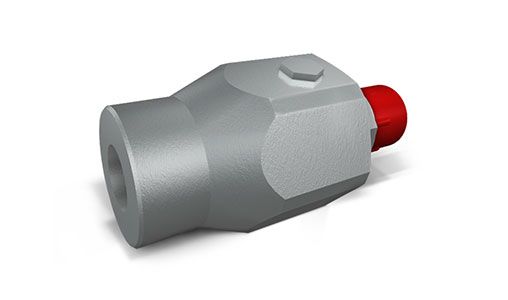

In Line Rotating Coupling

Use and Operation
These valves are mounted between the end of a flexible hose and a fixed component to compensate hose’s rotations and torsions and to prevent its damaging. They are not suitable for fast and continuous rotations. They are used in every production field where systems have flexible moving hose. In line mounting.

Materials and Features

• Body: zinc-plated steel
• Poppet Type: low friction seals

Applications
Connect ports P to the uses.

On Request

• NPT thread (code GN… instead of G... example: GGL ¼” NPT code = GN1050)
