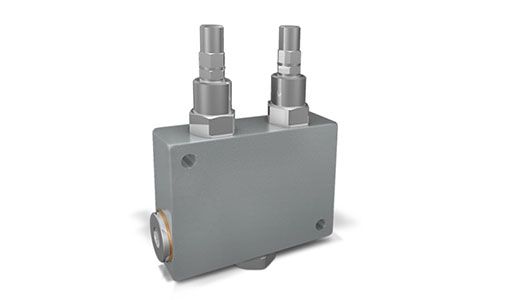

1 Way Special Block For No-Stop Plough And Sub-Soilers Tillers

Use and Operation

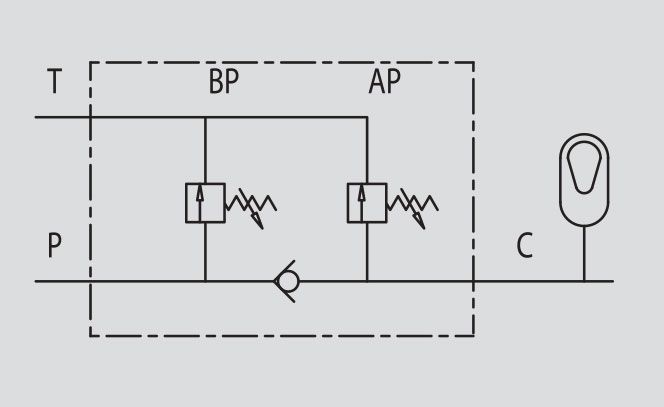

This valve is made up by 2 relief valves and 1 check valve. It is used to supply pressure to tanked systems on non-stop plough and sub-soilers tillers in order to provide protection against shocks.

Materials and Features

• Body: zinc-plated steel
• Internal Parts: hardened and ground steel
• Seals: BUNA N standard
• Poppet Type: any leakage

Applications
Connect P to the machine inlet, T to the draining or to the tank for the eventual oil reutilization and C to the system.

 Adjustment:

• BP adjusts the charge pressure of system and is set at 80 Bar
• AP adjusts the eventual security drainage opening and is set at 250 Bar
