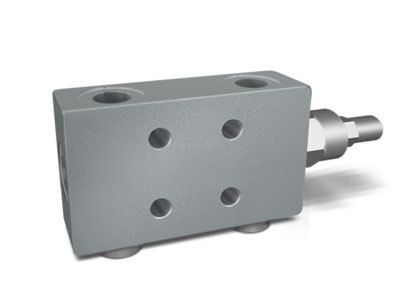

SINGLE OVERCENTRE VALVES FLANGEABLE

Use and Operation
These valves are used to control actuator’s movements and block in one direction in order to have a under control descent of a load; load’s weight doesn’t carry it away, as the valve prevents any cavitations of the actuator. Flange ports enable direct mounting of the valve on the actuator.

Materials and Features

• Body: zinc-plated steel
• Internal Parts: hardened and ground steel
• Seals: BUNA N standard
• Poppet Type:  minor leakage

Applications

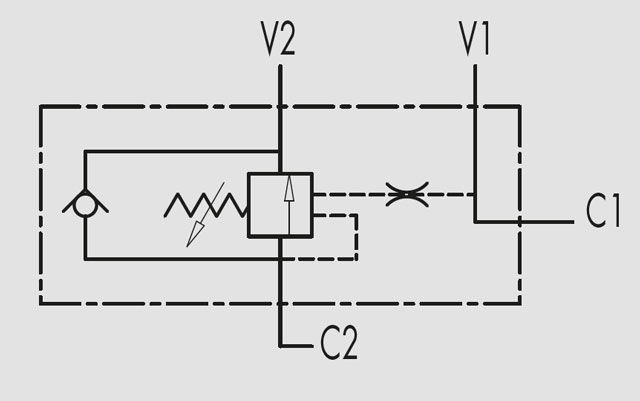

Connect V1 and V2 to the pressure flow, C1 to the free flow side of the actuator and flange C2 to the actuator’s side you want the flow to be blocked. V1 and V2 ports are reversible.

On Request

• other settings available
• sealing cap (CODE/P) and arranged for sealing cap (CODE/PP)
