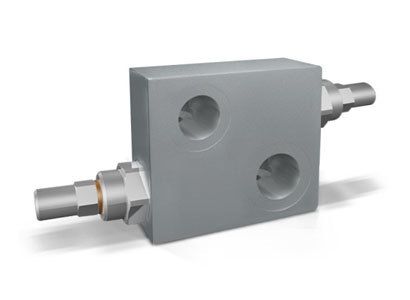

Dual Cross Relief Valves Flangeable On Danfoss Motors OMP/OMR by Screws

Use and Operation
Made up by 2 relief valves with crossed tank, this valve is used to block pressure to a certain setting in the 2 ports of an actuator/hydraulic motor. It’s ideal to provide protection against sudden shock pressures and to adjust different pressures in the 2 ports of an hydraulic circuit as well. Direct flange is ideal for Danfoss motors type OMP- OMR and provides a maximum safety, very low pressure drops and solid installation.

Materials and Features

• Body: zinc-plated steel
• Internal Parts: hardened and ground steel
• Seals: BUNA N standard
• Poppet Type:  minor leakage

Applications
Flange M1 and M2 directly to the motor by screws (not included) and connect ports V1 and V2 to pressure flow.

On Request

• different setting range
• other setting available (CODE/T: please specify the desired setting)
