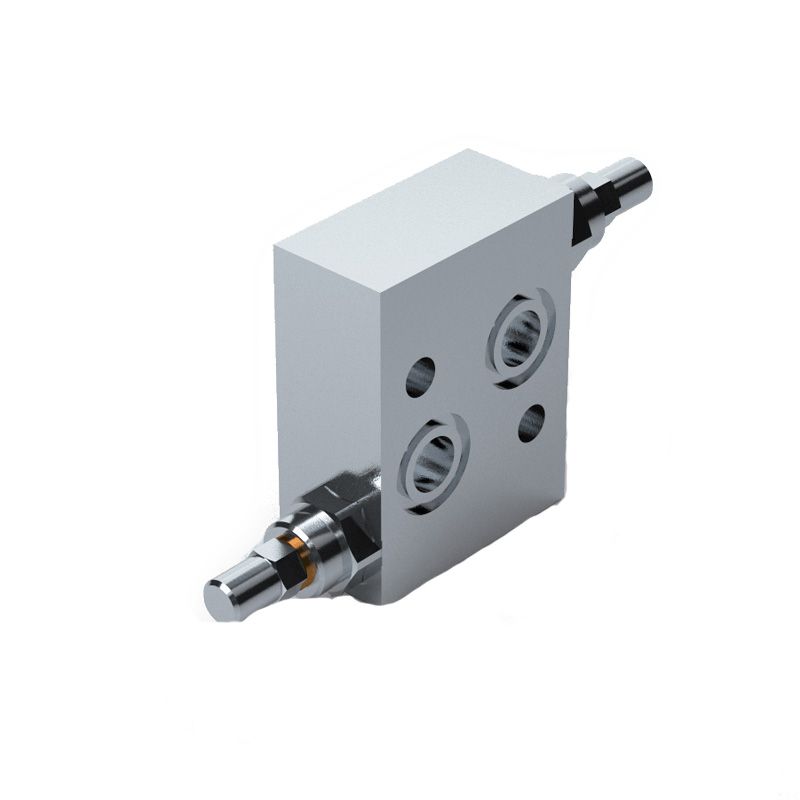

Dual cross line relief valve flangeable on danfoss motors oms

USE AND OPERATION:
Made up by two cross port relief valves, these
valves are used to limit the pressure in the both (DE) or one (SE) ports of a hydraulic motor to a certain setting.
Direct flange mounting for Danfoss motors type OMS provides maximum safety, very low pressure drop and a robust installation.

MATERIALS AND FEATURES:
Body: zinc-plated steel.
Internal parts: hardened and ground steel.
Seals: BUNA N standard.
Leakage: Guided poppet - negligible leakage.

CONNECTIONS:

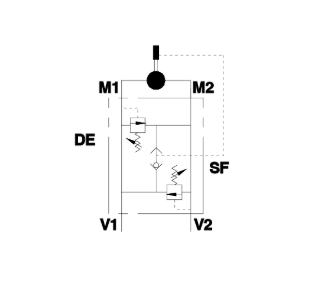

Flange M1 and M2 directly to the motor and connect ports V1 and V2 to the supply.

ON REQUEST
• different setting range (see the table)
• other setting available (CODE/T000 please specify the desired setting)
Oil temperature: 50° C - Oil viscosity: 30 cSt
