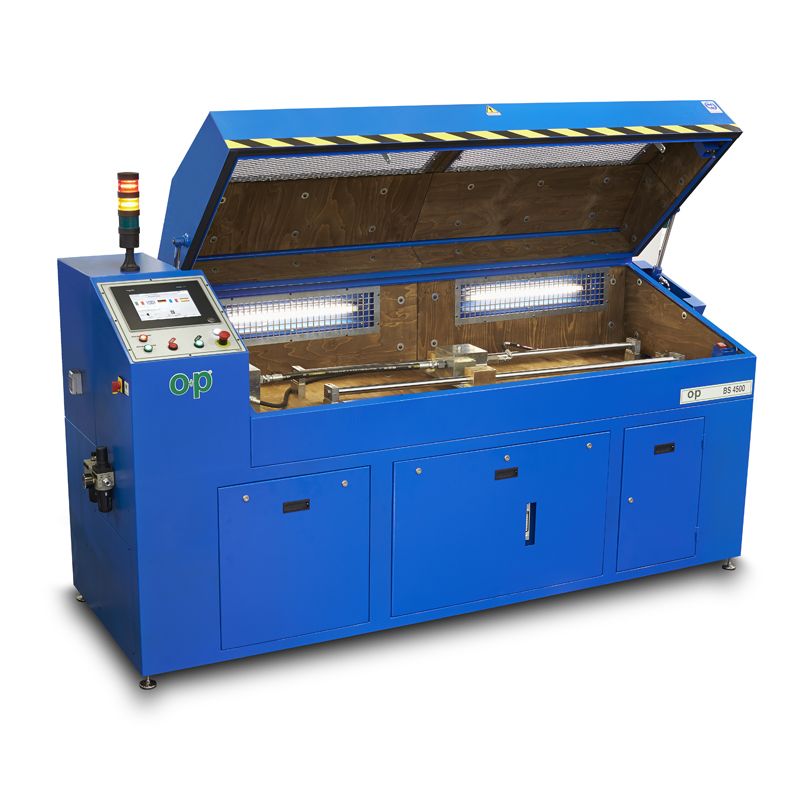

BC4500ES / BC4500ES
Bench for destructive tests, up to 4500 bars, provided with pneumo-hydraulic pump and graphic printer with automatic PLC control.
Product specifications could be modified without prior notice.
| IMPULSE PRESSURE | 4500 bar (65250 psi) |
| MIN. STARTING PRESSURE | 100 bar (1450 psi) |
| PRESSURE CONTROL | automatic |
| TEST | automatic |
| TYPE OF DRIVE | Pneumatic Intensi er |
| TESTING LIQUID | OIL |
| N° MANIFOLDS | 2 |
| MANIFOLD CONNECTIONS | 2 x M16 x 1,5 mm |
| LIQUID FILLING | Semi-automatic |
| FILLING FLOW | 25 Lt./min. |
| PRESSURE DISCHARGE | Automatic |
| DOOR ELECTRIC SAFETY DEVICE | Automatic |
| PRESSURE GAUGE | Digital |
| STANDARD CHAMBER DIMENSIONS | 2200 x 900 mm (86.614''x35.433'') |
| BENCH DIMENSIONS | 2470 x 950 x 1300 mm (97.244''x37.402''x51.181'') |
| TANK | 100 Lt |
| WEIGHT WITHOUT OIL | 681 KG (1500 Lbs) |
| STANDARD VOLTAGE | 400V 50Hz 3PH |
| AUTOMATIC CONTROL WITH PLC | Incl. |
| INTERNAL LIGHTNING | Incl. |
| SHOCK-PROOF CHECKING WINDOWS | Incl. |
| SUCTION FILTER | Incl. |
| DELIVERY FILTER | Incl. |
| BURST-PROOF PROTECTION | Incl. |
| SHELVES FOR TOOLS | Incl. |
| SLIDING MANIFOLDS | Incl. |
| PEAK PRESSURE MEMORY | Incl. |
| TEMPERATURE ALARM | Incl. |
| LEVEL ALARM | Incl. |
| USB CONNECTION CONFIGURATION | Incl. |
| PDF FILE PRINTING | Incl. |
| TESTING CHAMBER 3000 mm | OPTIONAL |
| ADAPTORS | OPTIONAL |
| PC CONNECTION | OPTIONAL |
| SPECIAL VOLTAGE | OPTIONAL |
