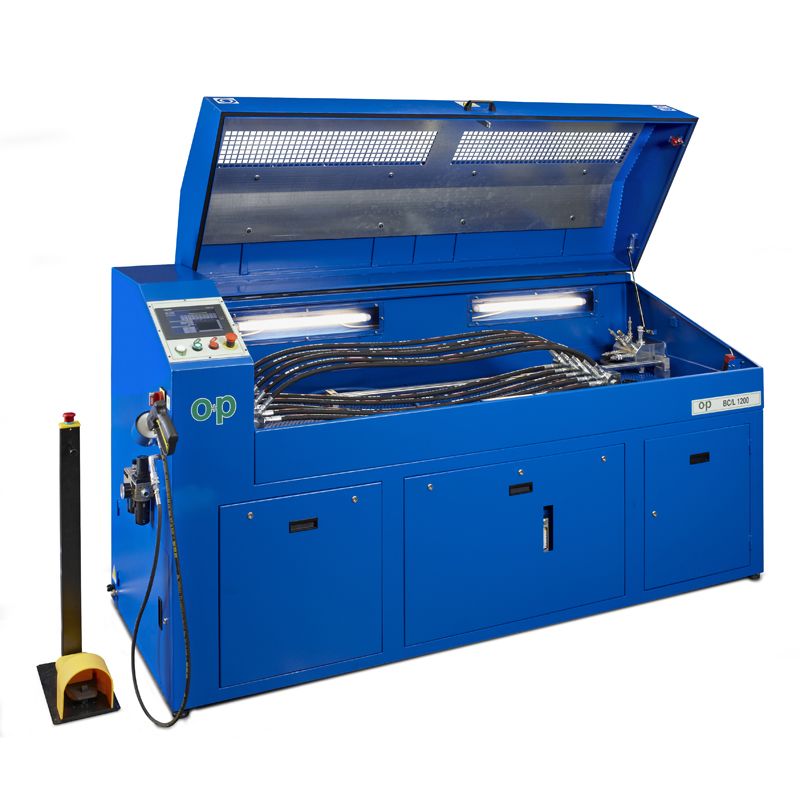

BC1200ES-2000ES / BC1200ES-BC2000ES

1200 and 2000 bar test bench, provided with pneumo-hydraulic pump.
Automatic door opening and luminous signal.
Lighted internal chamber protected by a shock-proof testing window; oil protecting mesh and shelve for tools.
Static and impulse pressure by air-oil pressure multiplier.
PLC control.

Product specifications could be modified without prior notice.

BC1200ES-2000ES


STATIC PRESSURE 1200 - 2000 bar (14404 - 29000 psi)
IMPULSE PRESSURE 1200 - 2000 bar (17404 - 29000 psi)
MIN. STARTING PRESSURE 1200 bar:30 bar (725 psi); 2000 bar:50 bar (435 psi)
PRESSURE CONTROL automatic
TEST automatic
TYPE OF DRIVE pneumatic intensifier
TEST LIQUID fluid
N. MANIFOLDS 2
N. MANIFOLD CONNECTIONS 15x1/4'' BSP
LIQUID FILLING automatic
FILLING FLOW 25 Lt/min
HOSE EMPTYING SYSTEM automatic
PRESSURE DISCHARGE automatic
PRESSURE DISPLAY digital
DOOR ELECTRIC SAFETY DEVICE automatic
STANDARD CHAMBER DIMENSIONS 2200x900 mm (86.614''x35.433'')
BENCH DIMENSIONS 2700x980x1700 mm (106.299''x38.583''x6.930'')
AIR CONSUMPTION 1500 Lt/min
TANK 100 Lt
STANDARD VOLTAGE 400V 50HZ 3PH
WEIGHT WITHOUT OIL 976 KG (2150 Lbs)
AUTOMATIC CONTROL WITH PLC incl.
AUTOMATIC DOOR OPENING Incl.
INTERNAL LIGHTNING Incl.
SHOCK-PROOF CHECKING WINDOWS Incl.
SUCTION FILTER Incl.
DELIVERY FILTER Incl.
OIL PROTECTING MESH Incl.
SHELVES FOR TOOLS Incl.
SLIDING MANIFOLDS Incl.
PEAK PRESSURE MEMORY Incl.
TEMPERATURE ALARM Incl.
LEVEL ALARM Incl.
USB CONNECTION CONFIGURATION Incl.
USB PORT Incl.
PRESSURE CONTROL Incl.
PDF FILE PRINTING Incl.
SAE MANIFOLDS OPTIONAL
ADAPTORS OPTIONAL
BURST-PROOF PROTECTION OPTIONAL
TESTING CHAMBER 3000 mm OPTIONAL
WASHING OPTIONAL
PC CONNECTION OPTIONAL
SPECIAL VOLTAGE OPTIONAL
